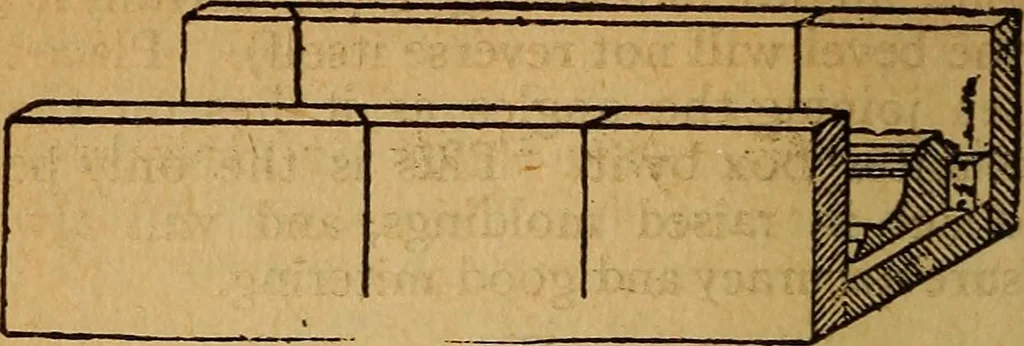

ake a small strip, and, placing the end of it down in thecorner, mark the arrises with a sharp pocket knife. Measurethese depths; in the case shown here they will be, for exam-ple, respectively, ^-inch, j^-inch, j^^-inch, full, j4-inch full,and Yz -inch, scant. Having done this, make 4 strips, or… … Fig. 2.Place it in the box as represented at Fig. 2, with the lip ofthe molding resting on the saddle as it will rest on the doorframe, at the miter and saw the left-hand end (say on the %scant saddle): To get the neat and exact length withoutgauging on the door. From the point where the saw…
