Hartford Steam Boiler Inspection and Insurance Company · Hartford, Ct. : Hartford Steam Boiler Inspection and Insurance Co · leaf 29

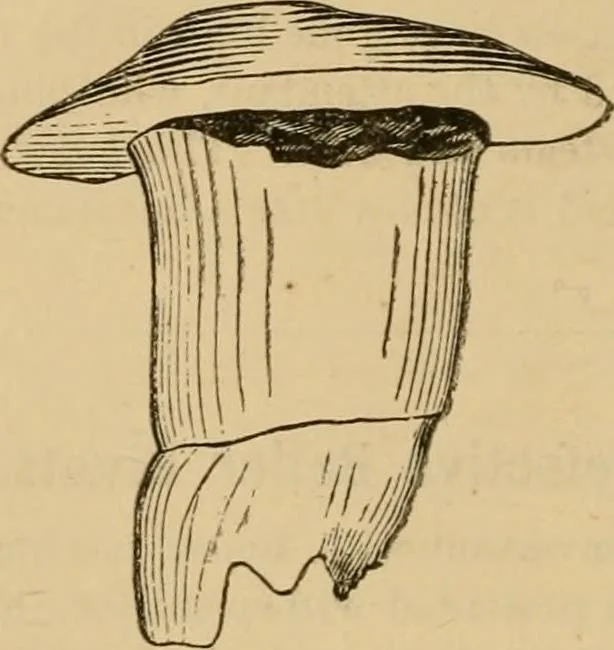

Fig. 1. Fig. 1.—Rivet which was driven n in over-set holes. The conical point broken offby the tearing apart of the plates. The head nearly severed from the body. Probablyweakened in driving.n From photograph full size. … Fig. 3. Fig. 2.—Rivet which was driven in over-set holes. Head broken off by thetearing apart of the plates. Conical point also nearly broken off—bad sample of driving —cone too flat to properly hold down the calking edge of the plate. Fromphotograph, full size. 1880.] THE LOCOMOTIVE. 23
Locomotives · Steam-boiler explosions
