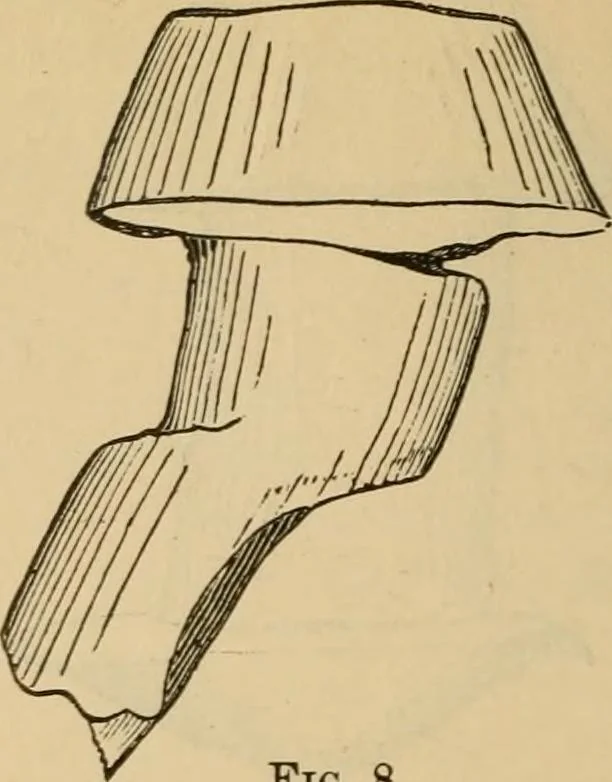

Fig. 5. Fig. 6. Fig. 7. Figs. 5, 6, 7.—Samples selected from a number taken from a sheared seam, whichwas believed to be the initial break from which the explosion arose. They were nodoubt similar to Fig. 4 before they gave way. From photographs, full size. 24 THE LOCOMOTIVE. [February, … Fig. 8. Fig. 8.—Rivet driven in over-set hole9. Was probably fractured under the headin driving. Similar to Fig. 1. Taken from a seam that was broken through the rivetholes. From photograph, full size.
