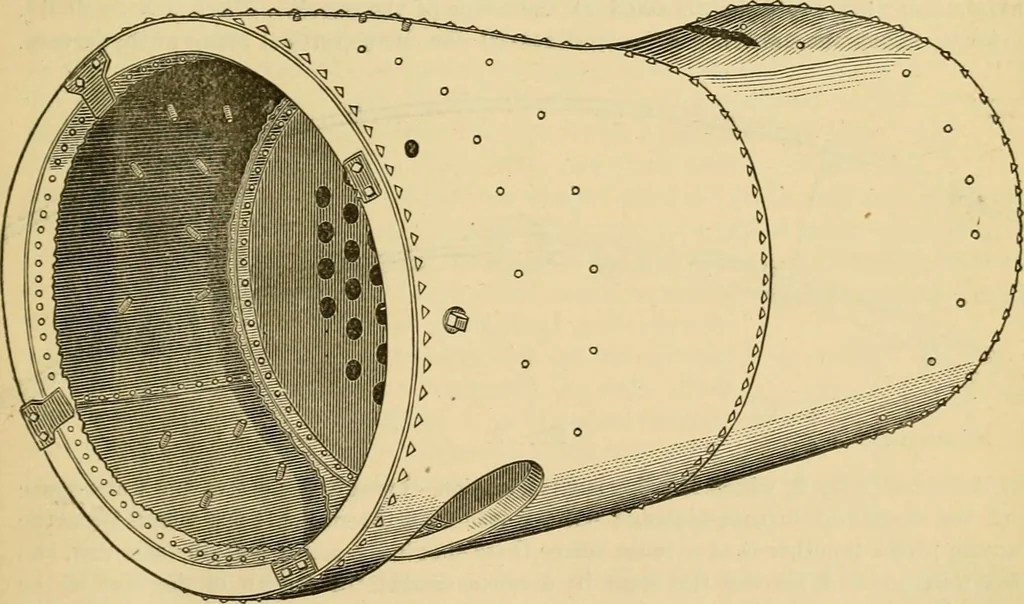

ol. 1, new series of TnE Locomotive. The general dimensions of thetwo boilers are about the same, but this one is on a more approved plan of construction.No portion of the tubes in this boiler were uncovered by water, on their convex surfaceswhen the water was at the gauge-cock level. The upper… … Fig. 1. the staying of these inner cylindrical portions to the shell by means of screw stays, theriveted ends of which are partly seen on the exterior, and the two rows belonging to thefurnace are partly seen in the cavity from which the furnace-plates were torn. It isobvious that this furnace is…
