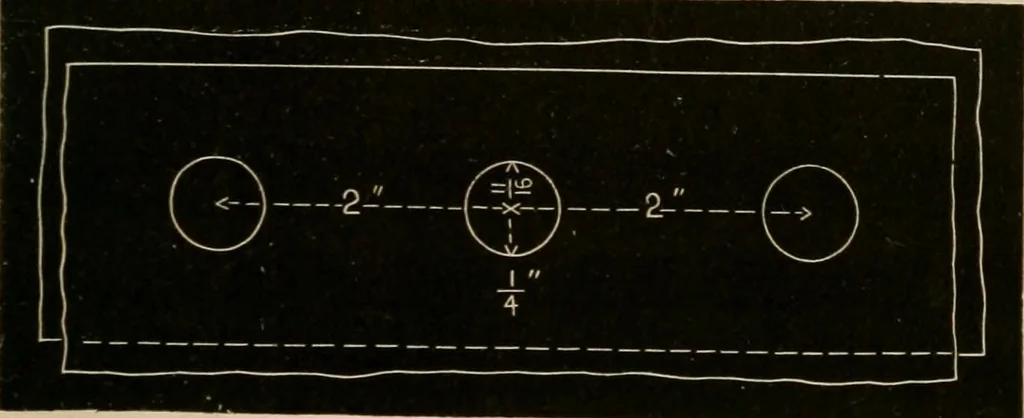

1883. No. 7. Proportions of Riveted Joints. The cuts in last months Locomotive show better practice than the average. Theywere selected from the proportions of the best and most prominent manufacturers only.The general practice in the greater number of shops was shown in Figs. 1 and 2, wherethe… … Fig. 1. Having shown the great diversity of practice in proportioning riveted joints, thequestion arises, what are the best proportions for the different thicknesses of plate? Wehave shown that the strongest form of joint is seldom realized in practice, and thatdouble-riveting is invariably badly…
