Hartford Steam Boiler Inspection and Insurance Company · Hartford, Ct. : Hartford Steam Boiler Inspection and Insurance Co · leaf 88

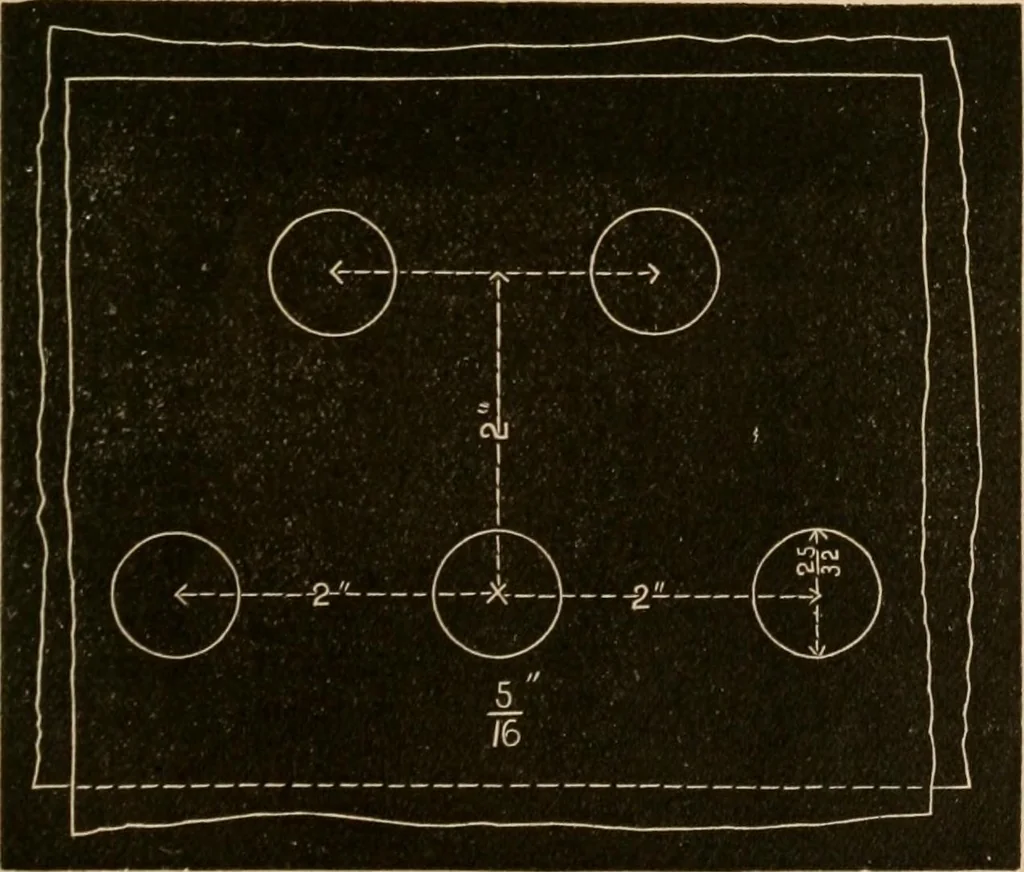

Fig. 1. … Fig. 2. pitch and rivet diameter are the same in both the single and double joints. In thesingle riveted joint the strength of plate at joint as compared with the solid plate is 82 THE LOCOMOTIVE. [June, ? II _ 61 per cent.; and the strength of the rivets as compared with the solid plate is = 77…
Locomotives · Steam-boiler explosions
