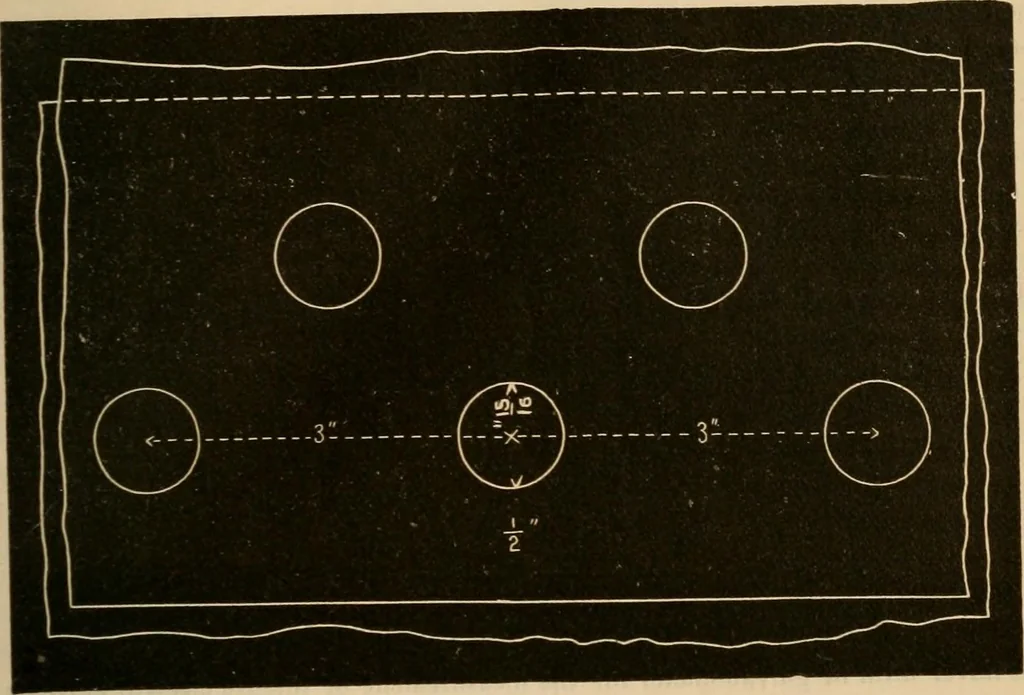

Fig. 11. Fig. 11. Plate f thick. Rivet holes, |-| diara. Pitch = 2|. 1882.] THE LOCOMOTIVE. 87 strength of pl.te at joint = ^^^^4^ = 70 ^ of solid plate. lO Strength of rivets at joint = -^^^ = 75 ^ of solid plate. … Fig. 12. Fig. 12. Plate f thick. Rivet holes i^ diam. Pitch of rivets = 3. Strength of plate at joint = tz^ = 69 fc of solid plate. Strength of rivets at joint = ^^^ = 93^ of solid plate. Next month ^ve shall submit what we think are the proper proportions for singleand double-riveted joints, and…
