Hartford Steam Boiler Inspection and Insurance Company · Hartford, Ct. : Hartford Steam Boiler Inspection and Insurance Co · leaf 165

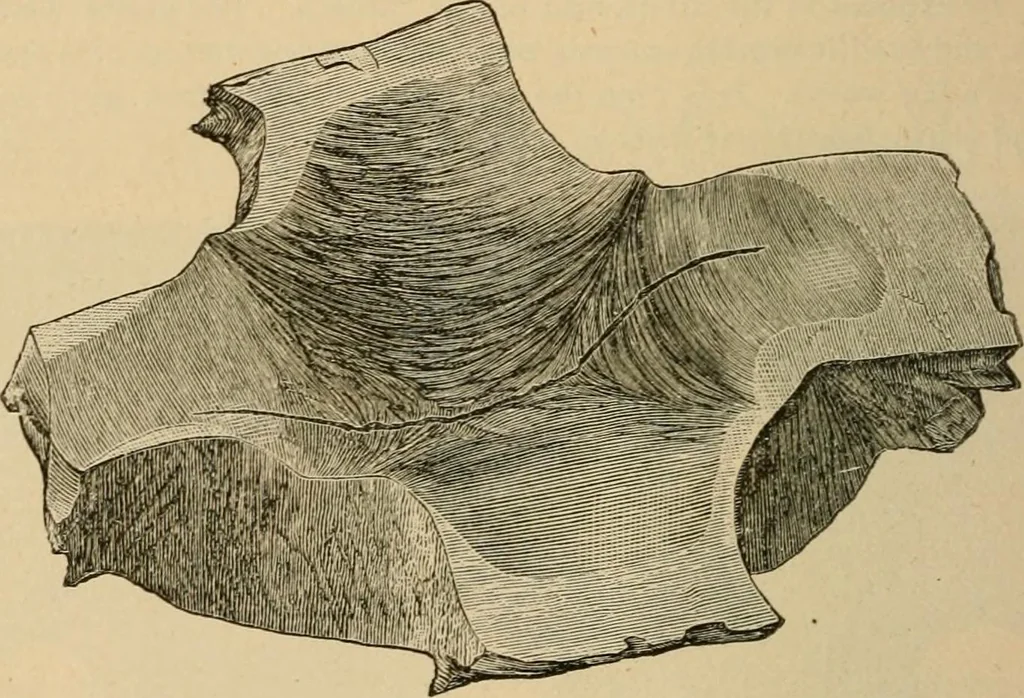

on a patch. The inner lap was injured very little. Single riveted joints should always be used in parts of a boiler which are exposedto the fire; for then, the plates being confined at but one point are free to expand andcontract at will, and no strain is brought upon the joint. It should be said… … Fig. 2. Figs. 2 and 3 show the result of allowing sediment to collect on the lower tubesheet of an upright tubular boiler. It is a very remarkable case. The head was one-half inch thick, the material, steel. In consequence of an accumu-lation of sediment between four adjacent tubes, the head at…
Locomotives · Steam-boiler explosions
Internet Archive · Carnegie Library of Pittsburgh · Public Domain Mark 1.0. Free to use for anything.
