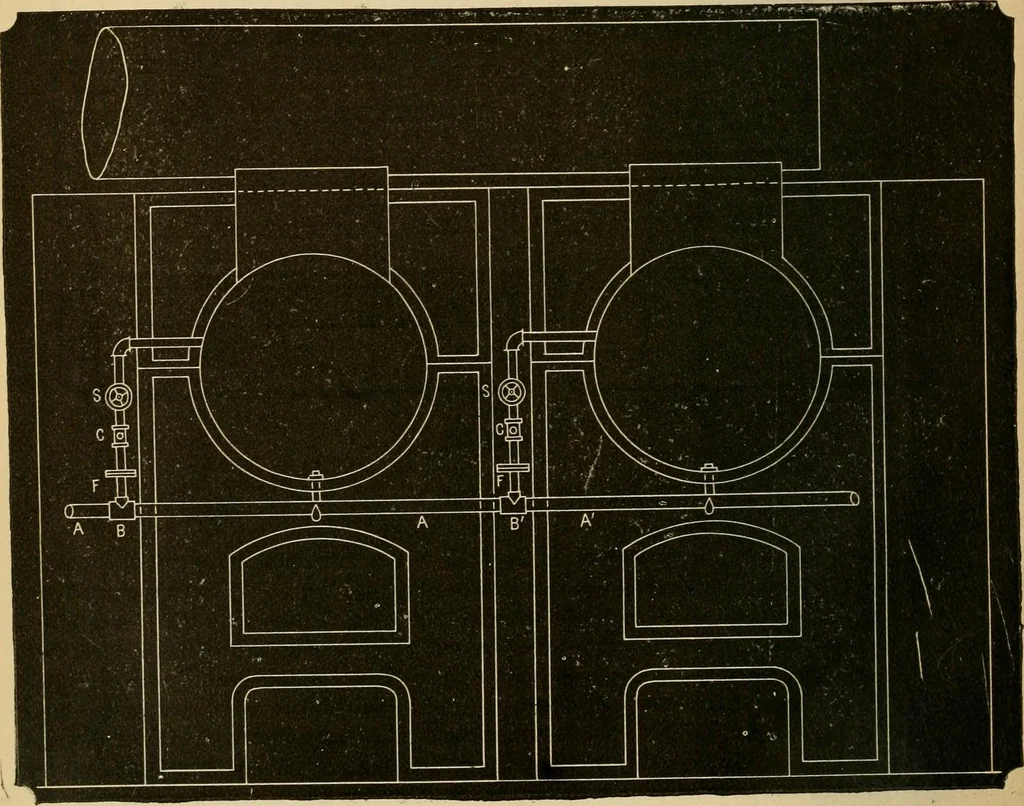

Fig. 2. course of the pipe is fully shown. The back end of the pipe should be suspended fromthe head braces to keep it in position as shown. Fig. 3 shows the arrangement of pipes for a battery of two or more boilers. Inthis case a larger pipe, from two to two and one-half inches in diameter,… … Fig. 3. 1883.] THE LOCOMOTIVE. 83 provided with its own independent stop-valve and check-valve, and each should haveone flanged jont as shown. This makes it a veiy easy matter to disconnect either oneof these pipes for repairs without disturbing any of the others. In the cut, two boilers onlyare…
