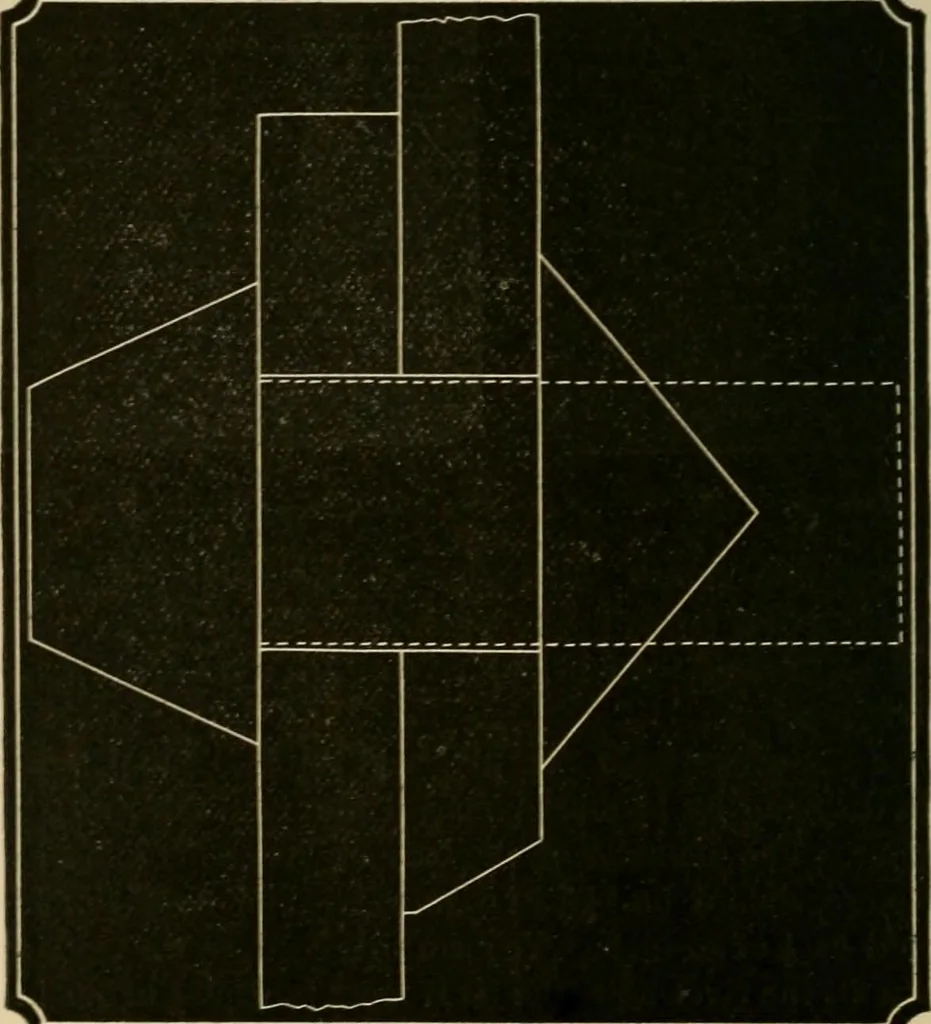

Fig. … Fig. 4. 1885.] THE LOCOMOTIVE. 83 or from ff to f of an inch. To form this head and furnish metal enough to properly fillthe rivet-hole it will be necessary to use a rivet If inches in length. - Figure 3 shows a good proportion of rivets in f plates. The holes as punched will
