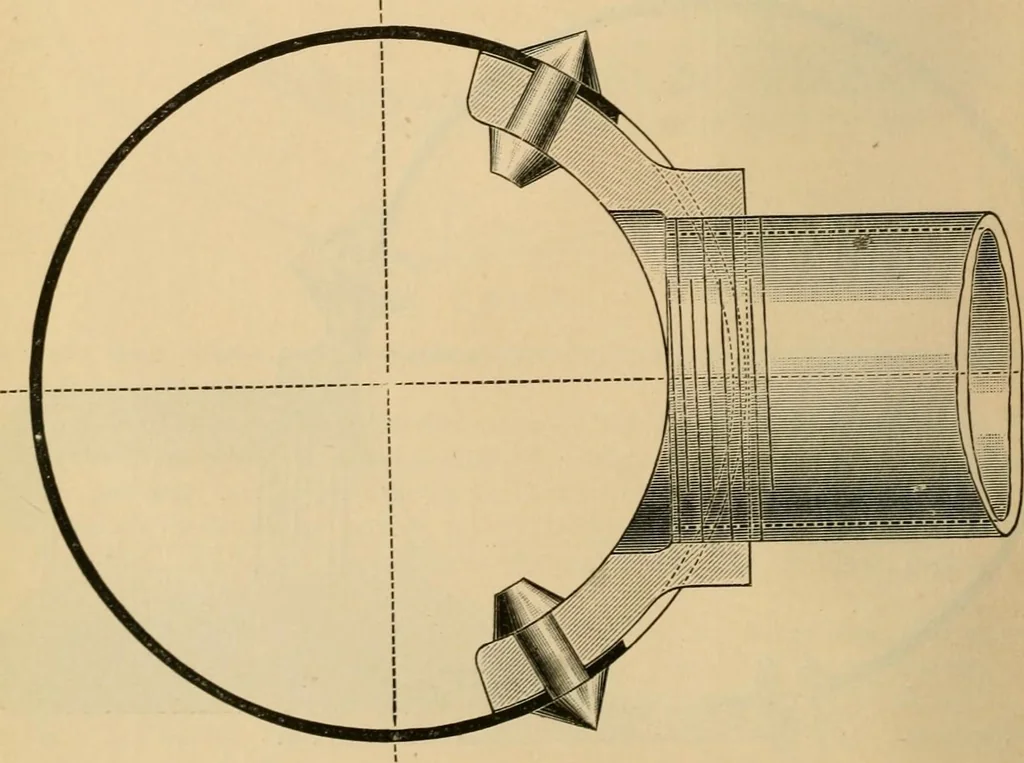

Fig. 5. … Fig. 6. 1888.] THE LOCOMOTIVE, 21 it is shown in Fig. 5. A shim or caulking piece of wrought iron is put between the pipeand the base of the nozzle, and the rivets extend through pipe, shim, and flange of nozzle,and are driven from the outside. The joint is then made tight by caulking the edge…
