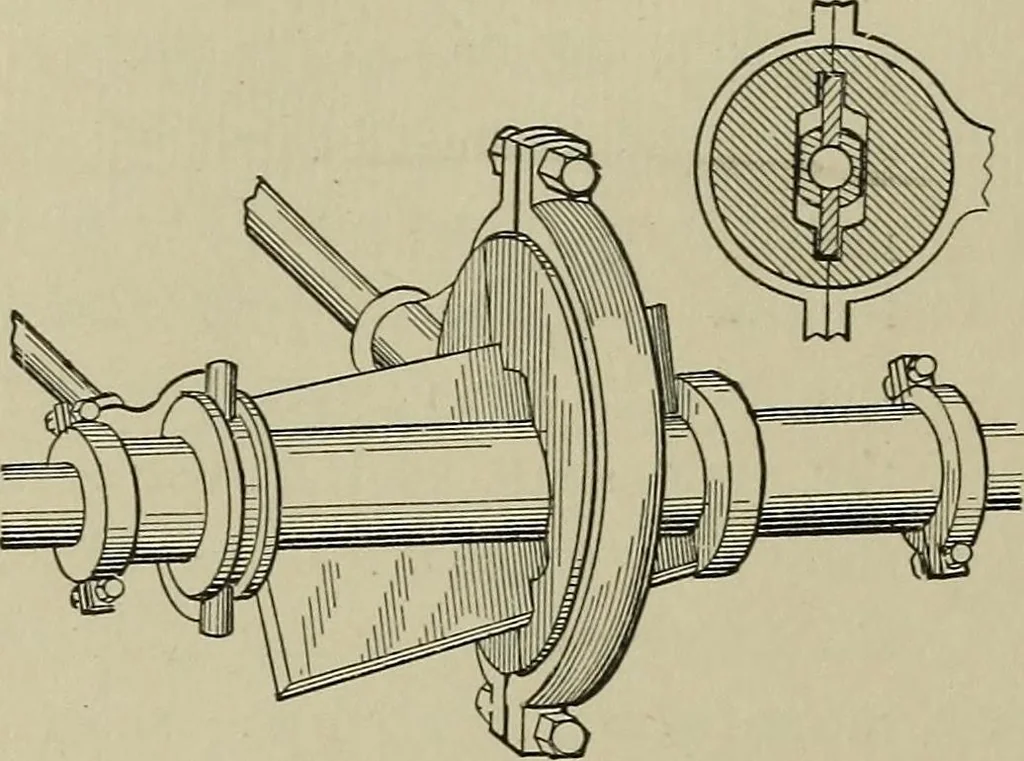

g6 STEAM POWER APPLIANCES. 212. SHIFTING ECCENTRIC … for stopping or reversing en-gines. A slotted sleeve slidingon the shaft with wedge-shapedwings that pass through cor-responding slots in the eccen-tric, move the eccentric to thecenter and reverse by the longi-tudinal movement of the sleeveand wings. The yoke lever andslotted collar control the…
