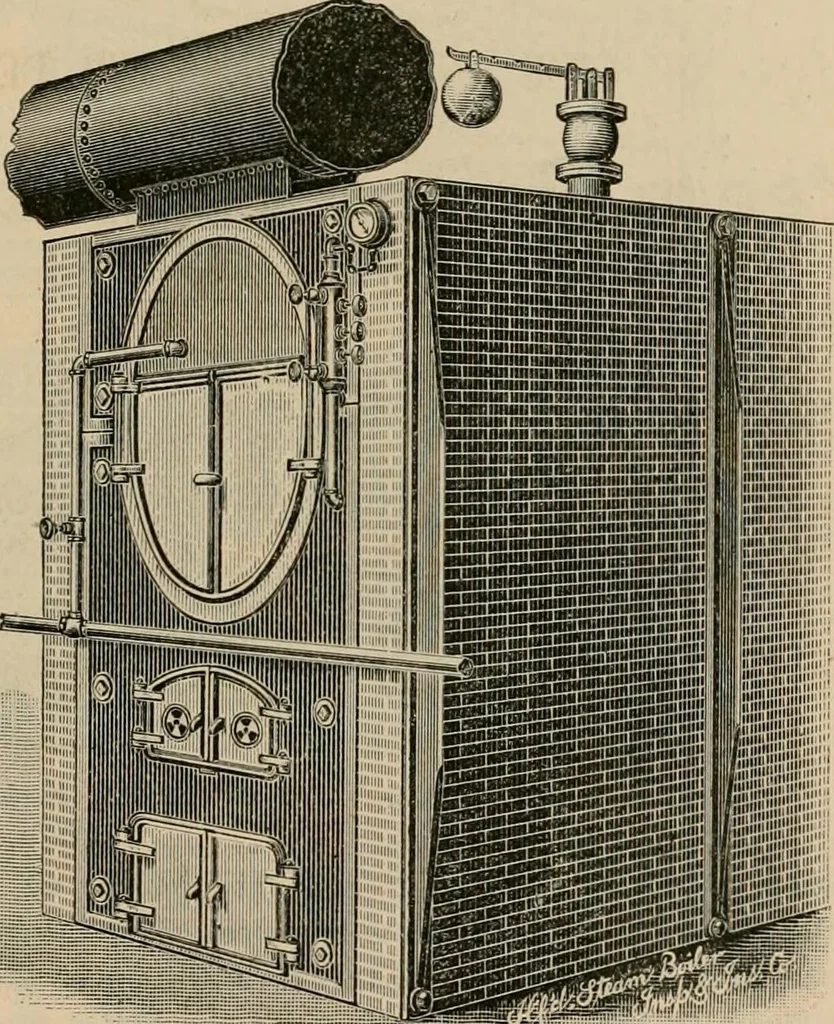

D INSURANCE COMPANY. New Seiues—Vol. XL HARTFORD. CONN., SEPTEMBER. 1890. No. i). Boiler Fronts. Boiler fronts are made in manj^ difterent styles, almost every maker having somepeculiar points in design that he uses on his own boilers and which nobody else uses.However, if we leave out the water… … Fig. 1.—A Flush Front. Fig. 1 is a perspective view of a flush front, and Fig. 2 is a sectional view of thesetting. This was one of the earliest forms of fronts, and thougli it often gives goodsatisfaction, yet it is liable to certain accidents that will be presently explained, and wealways…
