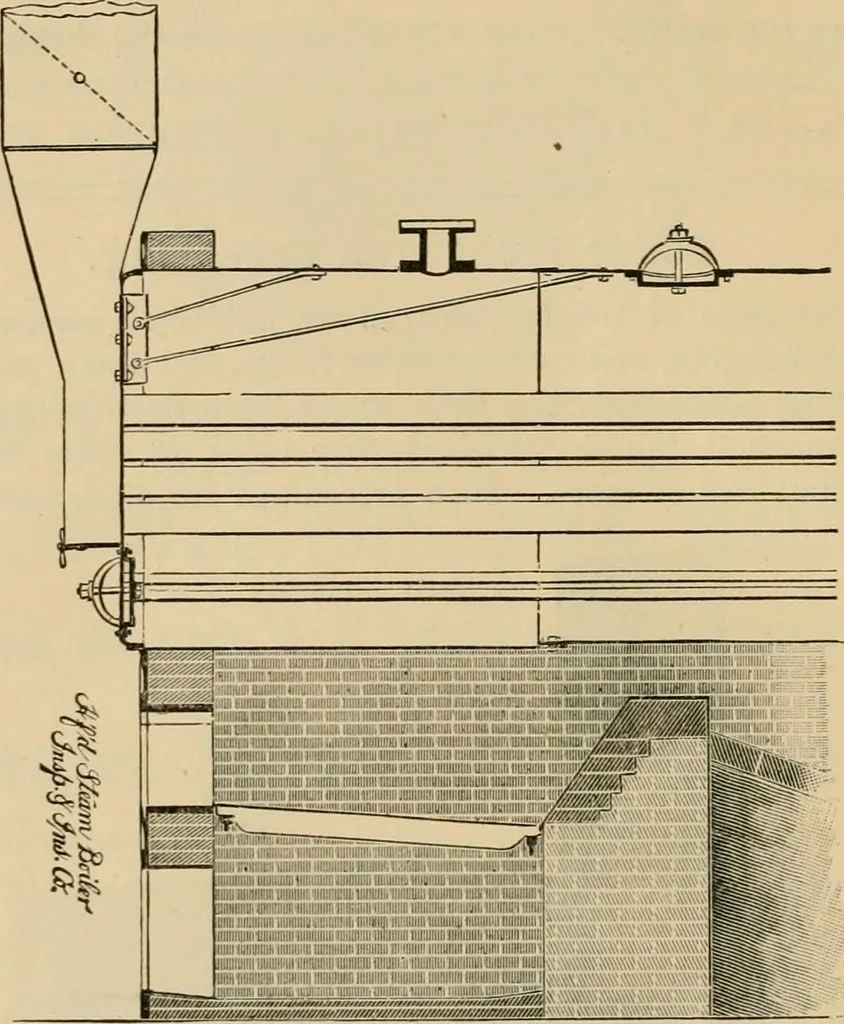

tubes. The breeching comes down in frontfar enough to include the lowest row, while not interfering with the manhole. The 178 THE LOCOMOTIVE. [December, arrangement of tubes and breeching will be understood by referring to the sectional view, Fig. 2. Part of the braces in this cut have been omitted… … Fig. 2.— Boiler Front with Breeching. Sectional View. for inspection, and for repairs also, should these be necessary. To brace the portion ofthe head below the tubes, we recommend that four braces be run through the boilerfrom end to end, two on each side of the manhole. We recommend that these be…
