Hartford Steam Boiler Inspection and Insurance Company · Hartford, Ct. : Hartford Steam Boiler Inspection and Insurance Co · leaf 8

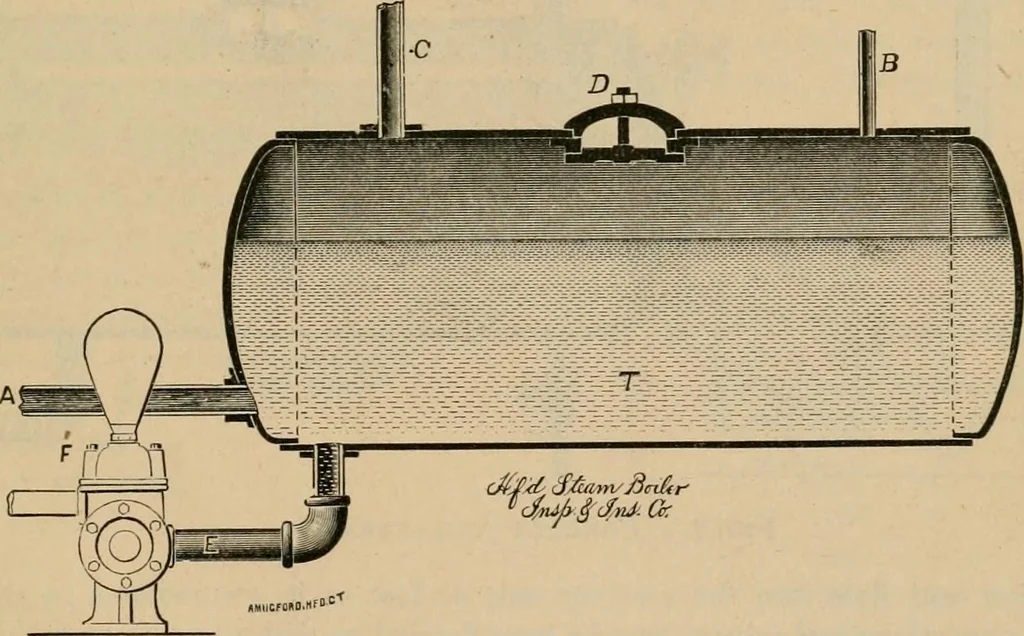

s, some new elements ofdifficulty come into play and call for careful consideration. Our illustrations this monthsliow receiving tanks as applied to such systems. Our attention was recently called to a heating installation that was giving greattrouble from pounding and rattling, and upon… … Fig. 1. — Incorrect Arrangement. receiver through a three-inch pipe, shown at A, this pipe entering through the headnear the bottom of the tank. The supply for the jiump F (which returned the waterfrom 7 to the boilers) was taken from the bottom of the tank through pipe E. An escapepipe was placed…
Locomotives · Steam-boiler explosions
