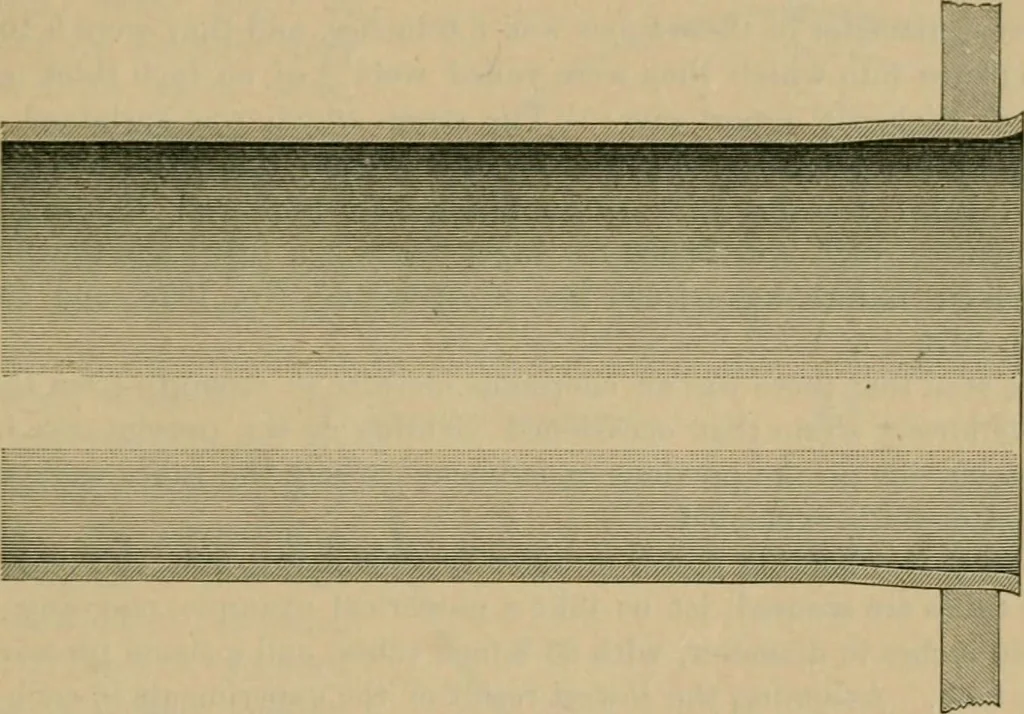

tube yielding in the plate was 0,000 lbs.for specimen No. 1075; 4,500 lbs. for specimen No. 1076; and 7,000 lbs. for specimenNo. 1077. The observed stress which occasioned yielding was 6,500 lbs. for specimenNo. 1075; 5,000 lbs. for specimen No. 1070; and 7,500 lbs. for specimen No. 1077. Theforce… … Fig. 6. — A Flared Tube. but since so much depends on the proper use of the Dudgeon expander, some mechani-cal engineers were not ready to believe that the general run of tubes thus rolled in wereas effective as our specimens indicated. This criticism is certainly justifiable, and henceall…
