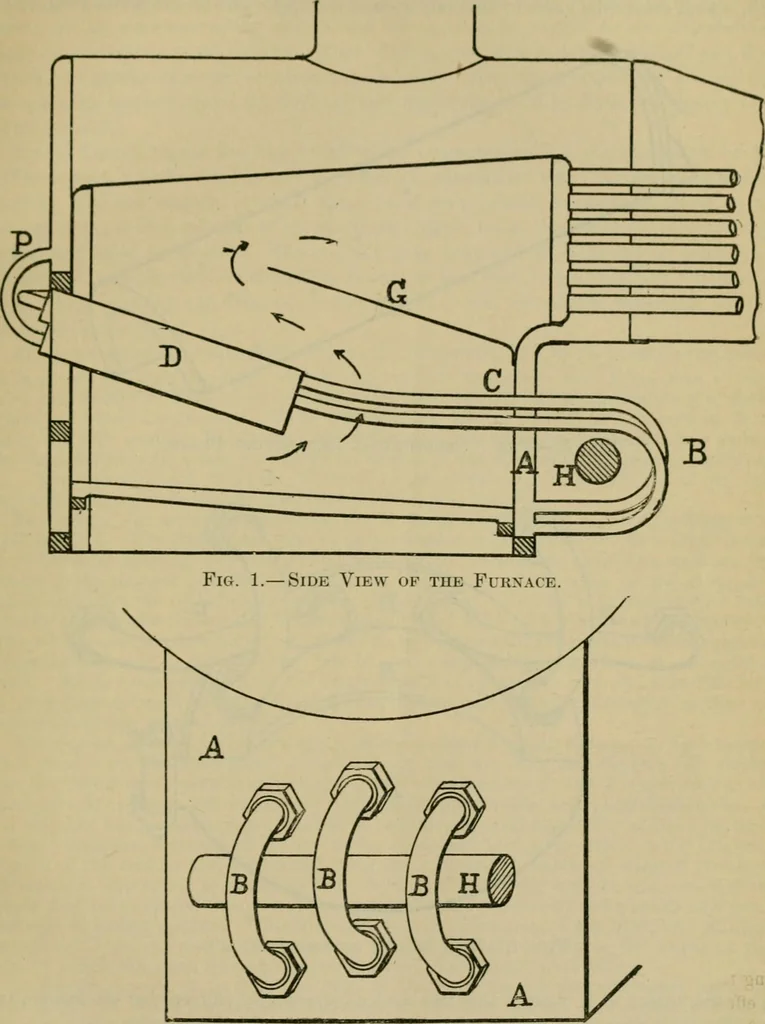

s of sheet-iron, steel, or other suitable metal,stay-bolted together at proper intervals. At its lower end it receives the three pipesalready referred to; and its upper end fits into the mouthpiece of the furnace door.Fig. 4 shows this upper end more in detail, as viewed from the cab. Here D is the… … Fig. 2.—The Furnace as Seen from the Front of the Locomotive. air to the fire-box. From the deflecting-plate, Z>, four two-inch pipes, PP, are ledoff, and these are bent so to re-enter the front water-leer, as shown in both Fig. 1 andFig. 4. When the device is in operation, a continual…
