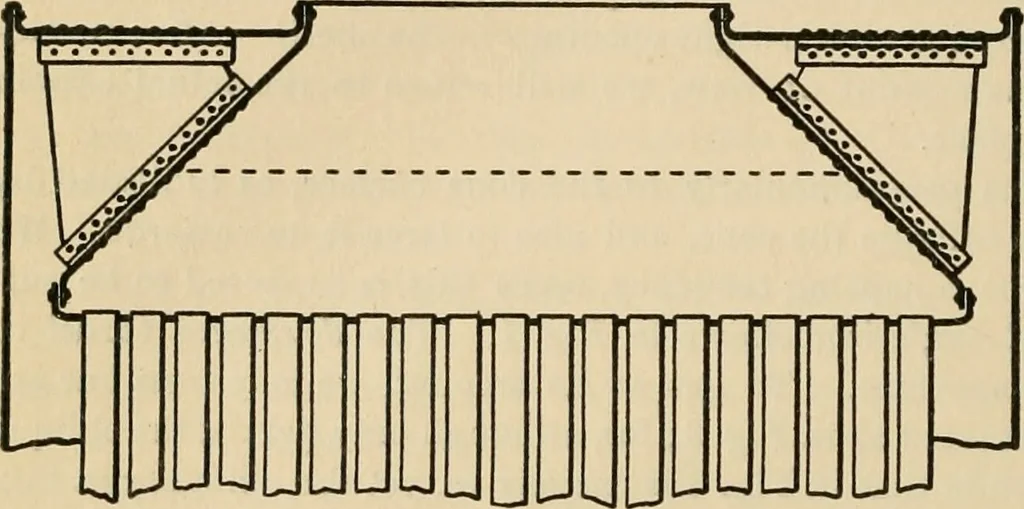

ex-ceed eight or ten inches, whenmeasured along the surface ofthe cone, at the height indi-cated by the dotted line inFig. 4. It may be found thatwhen the boiler is of unusuallylarge diameter, the gussets areso far apart, towards the outeredge of the top head, that the sectors into which they… … Fig. 4.—Pkopeh Disposition of the Gusset Straps. Inspectors Report. May, 1897. During this month our inspectors made 8,156 inspection trips, visited 16,079 boil-ers, inspected 7,171 both internally and externally, and subjected 687 to hydrostaticpressure. The whole number of defects reported…
