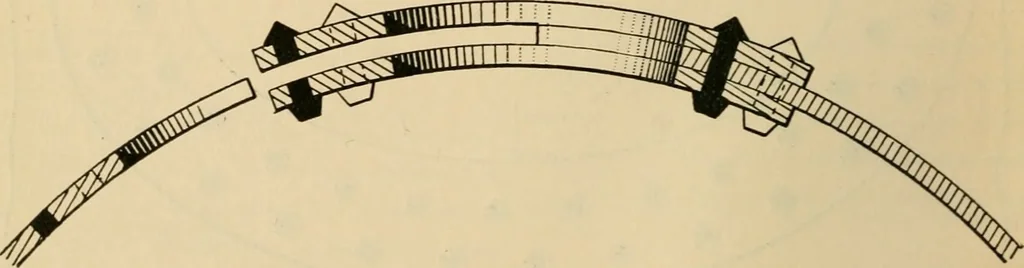

at arrangement of rivets will fulfil the desired conditions of making the rivet-area equally strong with the ring itself. By applying the rule there given, we foundthat a stock-opening 24 wide and 42 long would be suflRciently re-enforced by apair of steel rings, each of which is nine inches wide… … Fig. 3.—Sectional View of Ring, after Failure. across, there is a strong probability that the fracture would pass through two of therivet-holes; and hence, in figuring the streogth of the ring, we must deduct, from thewidth of the ring, the diameter of two rivet-holes. Let us assume that a 15-16…
