Hartford Steam Boiler Inspection and Insurance Company · Hartford, Ct. : Hartford Steam Boiler Inspection and Insurance Co · leaf 76

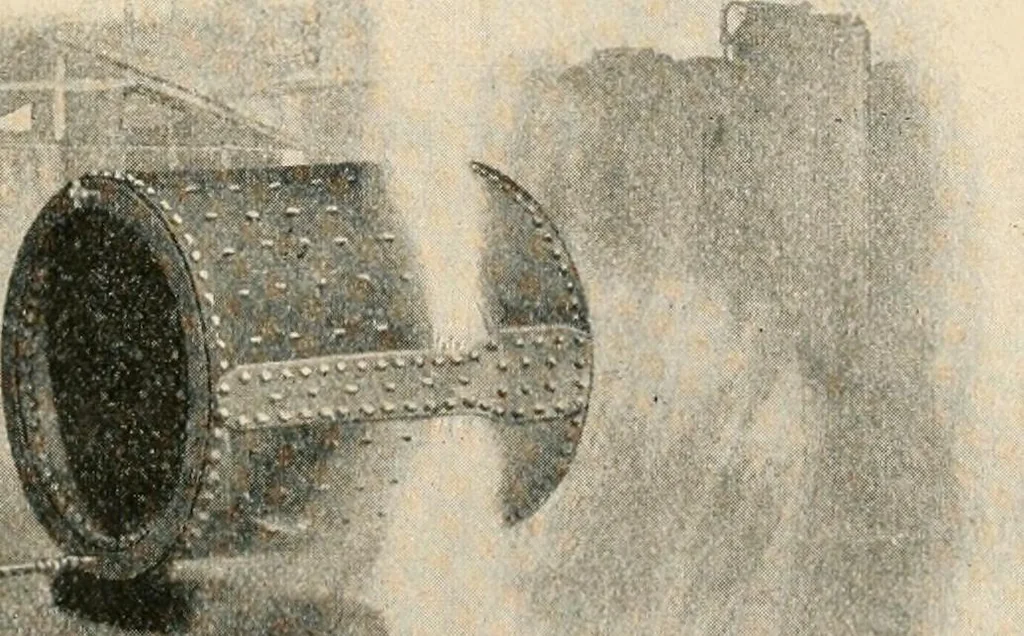

hort space allotted to the triple-riveted section of the joint, there was only onefull space of 6| on the outside row of rivets, the pitch between the two outside rivetsnearest the furnace end of the boiler being reduced of necessity to 4|, as indicated inthe engravings. One row of stay-bolts, it… … Fig. 6. — Leakage at the End of the Test. 70 THE LOCOMOTIVE. [May, 50 feet of l^-inch pipe, which entered the wrought-iron ring at the bottom of the fur-nace, as may be seen in the engravings. Just as it entered the boiler, the pipe wasreduced to £ inch, in order that the ring might not be…
Locomotives · Steam-boiler explosions
