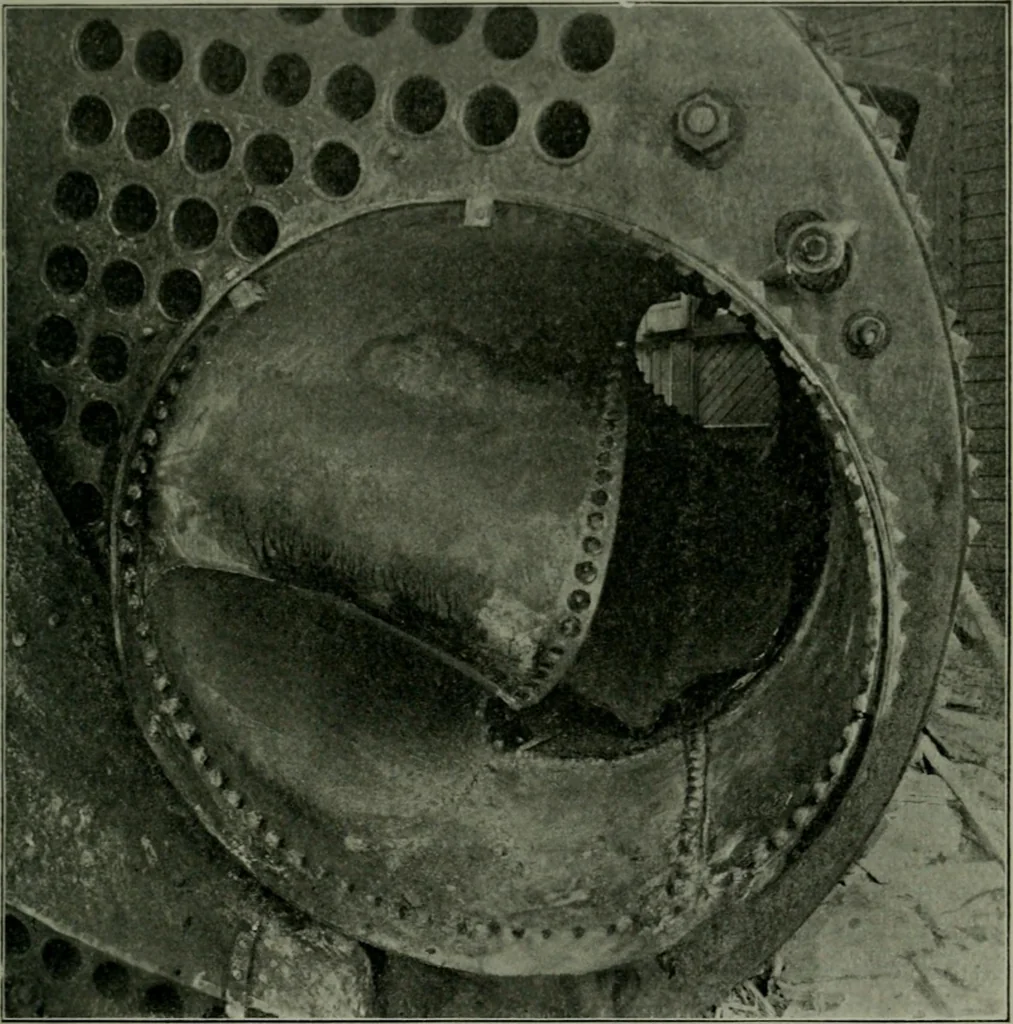

s long and were built in 1913. The rupture occurredin the furnace which failed as illustrated on the opposite page. In-vestigation showed that the furnace had collapsed over its entire length 1920.! THE LOC0M 0T1VE . 99 from head to head. The rupture, which started from the center ontop and… … View of Collapsed Furnace.and, strange to say, the shell of the boiler was not so much as dented.As will be noted by reference to the illustration, the upper half ofthe front course of the furnace was bent until it stood at an angle ofabout ninety degrees. At the rear the upper half of the furnace…
