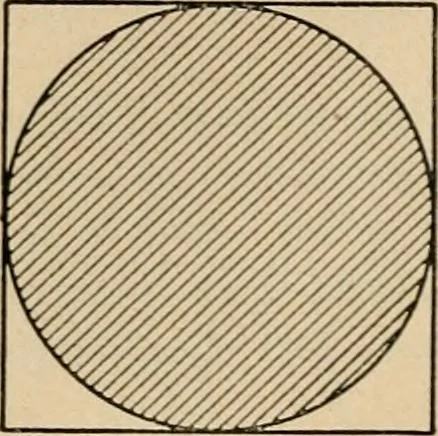

ircle (also showndotted) which just touches this square on the inside; and this dotted circle will repre-sent the main pipe, on the same scale as that on which the shaded circles representinsthe two feeder pipes are drawn. For the dotted square is equal to the square Oa plusthe square Ob; and hence… … A * *•* ~ - *x * a h V 4fc C w V v ^ 0 • kh V B Fig. 10. Fig. 11. —The Theorem Applied toRound Pipes. Square Drawn Arounda Circular Pipe. In proportioning pipes in practice, we have to be governed by the sizes of pipe thatare available in the market; and therefore we cannot always choose a main…
