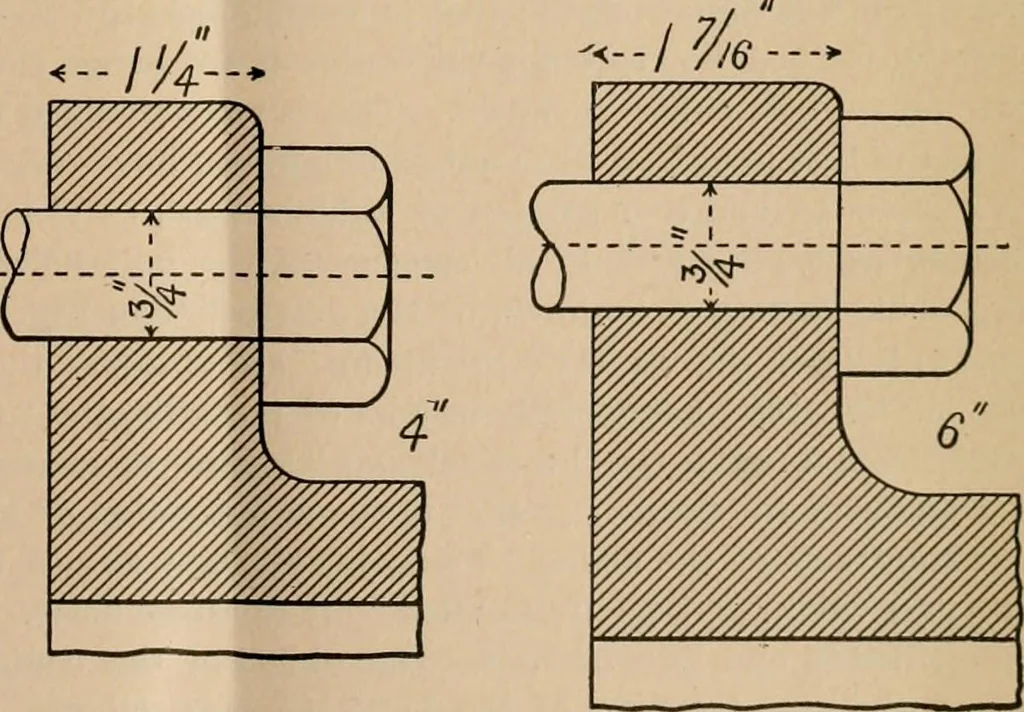

Figs. 7, 8, and 9. — Sections of Extra Heavy Flanges. Size.) (One-Half Actual 20 THE LOCOMOTIVE [February, Table I.—Schedule of Standard Flanges. (Adopted. July 18, 1894.) Diameter of bolts. T _*!. Flange Pipe Diameter Diameterof Number Lengthof thickneseat hub Flangethickness Width of size. of boh…
