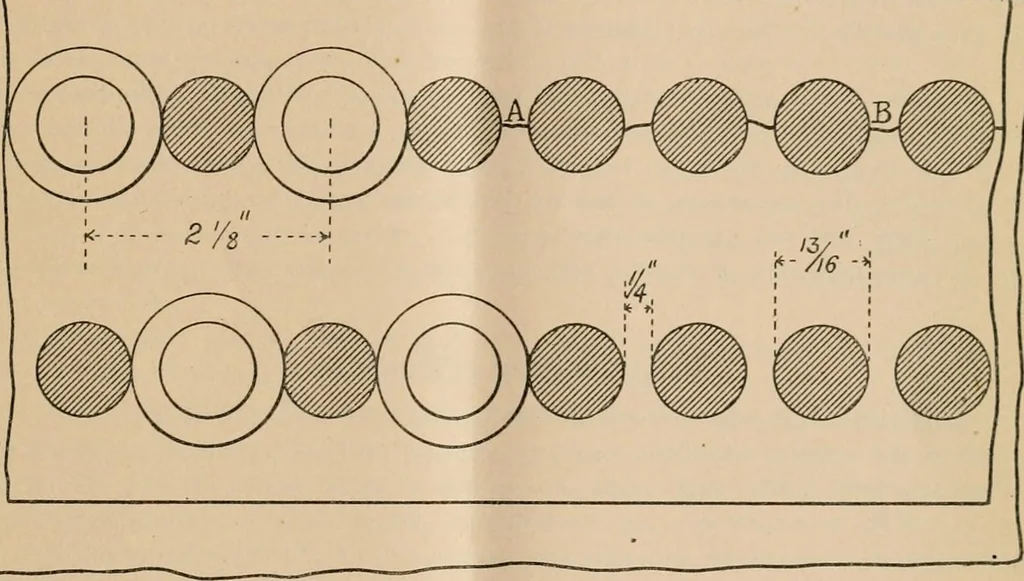

of one of these ligaments is 0.23 x 0.344 = 0.086 square inches; and ifwe allow a tensile strength to the material of the plate of 45,000 pounds per squareinch, the strength of one of these ligaments is equal to 0.086 x45,000 = 3,870 pounds.As there are two such ligaments to each unit of the joint,… … Fig. Diagram Givino Dimensions. [Four rivet heads are shown in this cut, to illustrate the relation of the replaced buttons to the rivets. Theoilier rivet heads are supposed to be removed, so that the ligaments left between the real and false rivel hi li -may be seen more clearly.j 4^- units of the…
