Hartford Steam Boiler Inspection and Insurance Company · Hartford, Ct. : Hartford Steam Boiler Inspection and Insurance Co · leaf 110

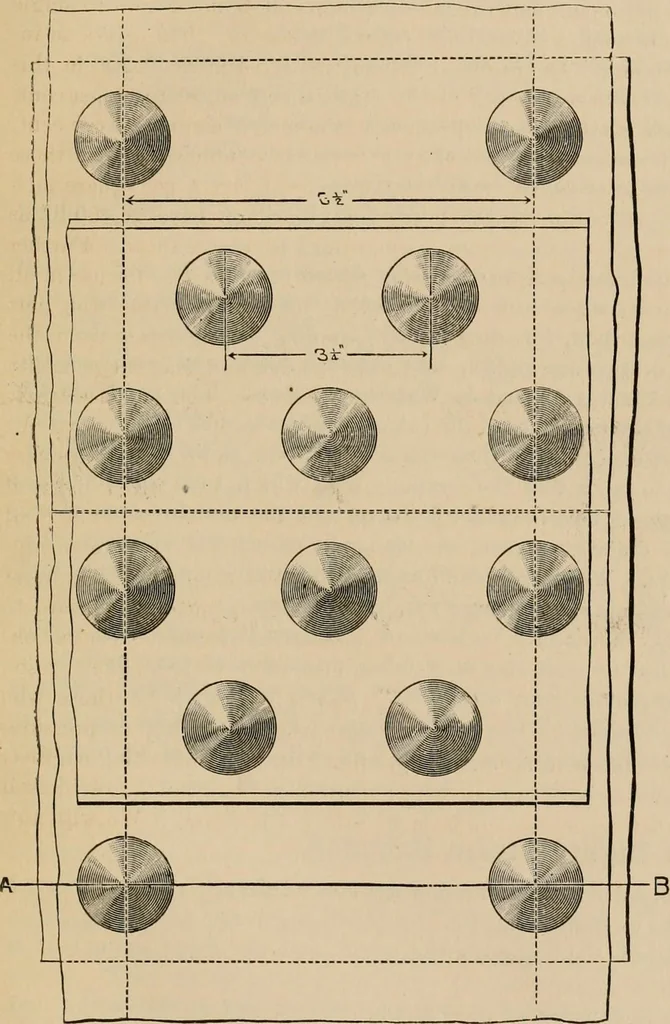

165,505, shearing strength of all the rivets. The net section ofplate is the weakest-therefore, 117,304 ^ 134,002 = 87.5 per cent, efhciency of jointIt will, no doubt, be observed that the strength of rivets in this joint is largely in excessof the strength of net section of plate, and the question… … h ¥ f^ Fig. 5.—Double Welt Butt Joint. joint. If the inner welt or covering strip had been of the same width as the outer one,the net section of plate would have been greatly reduced and the difference of strengthbetween net section of plate and rivets would have been greater, thus reducing…
Locomotives · Steam-boiler explosions
Internet Archive · Carnegie Library of Pittsburgh · Public Domain Mark 1.0. Free to use for anything.
