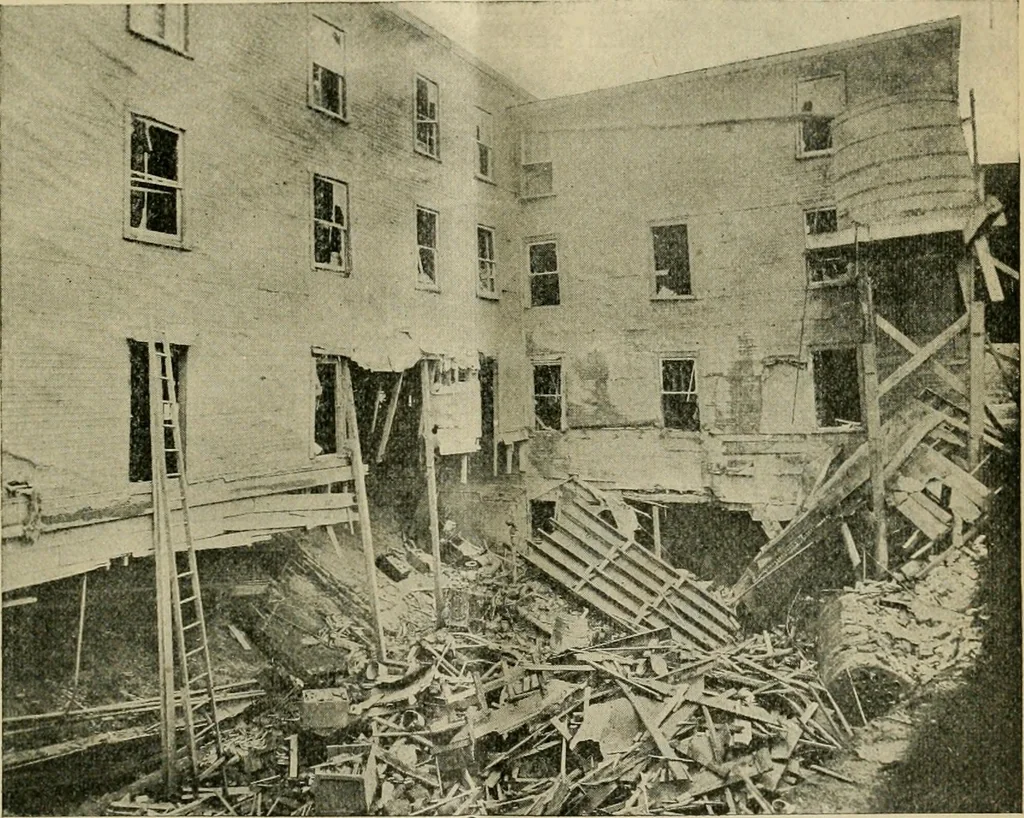

owed no brands. The rivetswere 11/16 in. in diameter, pitched 2 in. from center to center, the joints beingsingle riveted. The heads were 7/16 in. thick, and there were forty 3-in. tubes.Two 10-in. X 15-in. manholes were located in each head, these being reenforcedby strips 2 in. wide and l/i in.… … Ruin Wrought by the Explosion of a Horizontal Tubular Boiler. angle iron, 3 in. X 3 in. X ^ in., riveted across the head, a stiffening piece ofplate being attached to this, which was 6 in. wide at the middle, and taperedtowards the ends. There were two boilers in the nest, these being connectedby…
