Hartford Steam Boiler Inspection and Insurance Company · Hartford, Ct. : Hartford Steam Boiler Inspection and Insurance Co · leaf 189

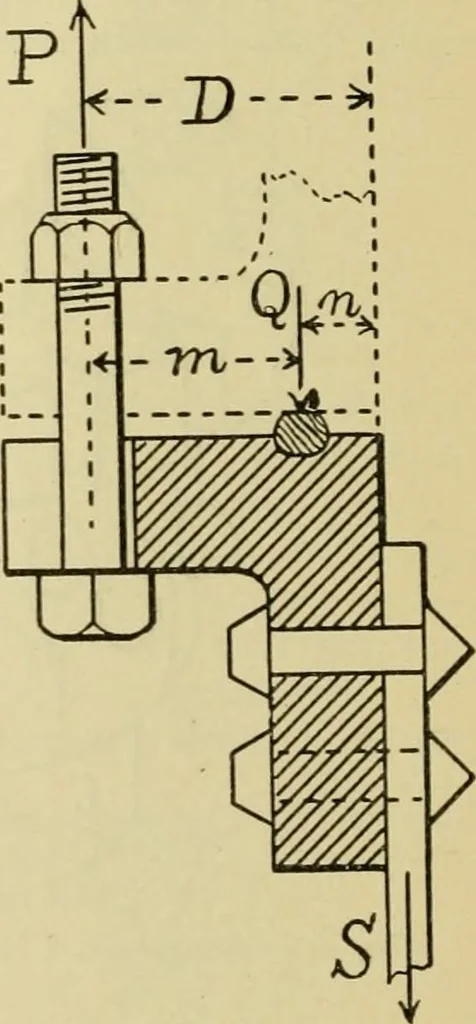

\ IIUIIHI Fig. 8. — Illustrating the Total Steam Load. … Fig. g.— The PrincipalVertical External Forces. we shall not take it into account. The radial pressure of the steam against thatpart of the shell which overlaps the ring is probably carried, for the most partat least, by the shell itself, without material direct influence upon the ring. Thepressure…
Locomotives · Steam-boiler explosions
