Hartford Steam Boiler Inspection and Insurance Company · Hartford, Ct. : Hartford Steam Boiler Inspection and Insurance Co · leaf 193

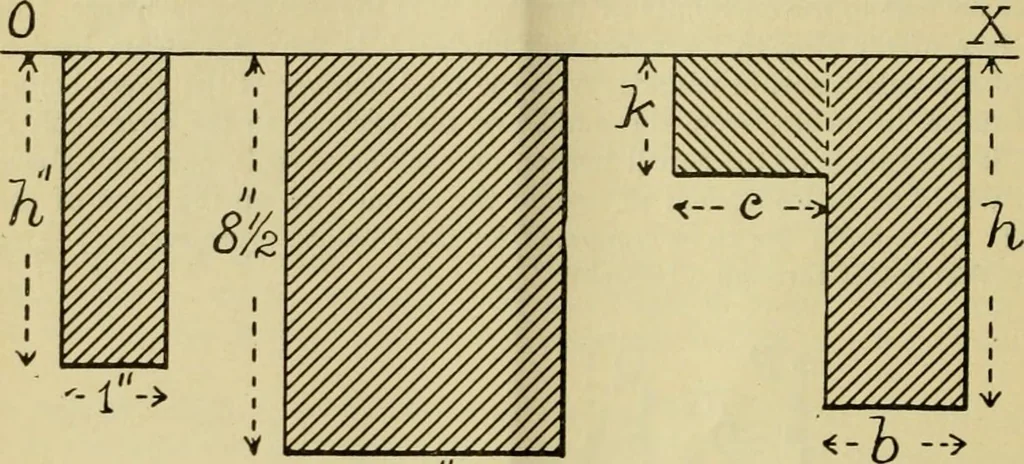

h 184 THE LOCOMOTIVE. Duly, inches long and i inch wide; and from the table we can take, directly, the valueof the moment of inertia of this rectangle with respect to the line OX. Themoment of inertia of a rectangle having any other width than one inch is foundby taking out the tabular value for a… … Fig. 13. <— 3--~> Fig. 14.Moments of Inertia. Fig. 15. first look in the table for the value h = 8./2 in., and opposite this we find 204.71,which is the value of the moment of inertia of a rectangle having a length of 8^2inches, and a width of one inch. The given rectangle being 3 inches…
Locomotives · Steam-boiler explosions
