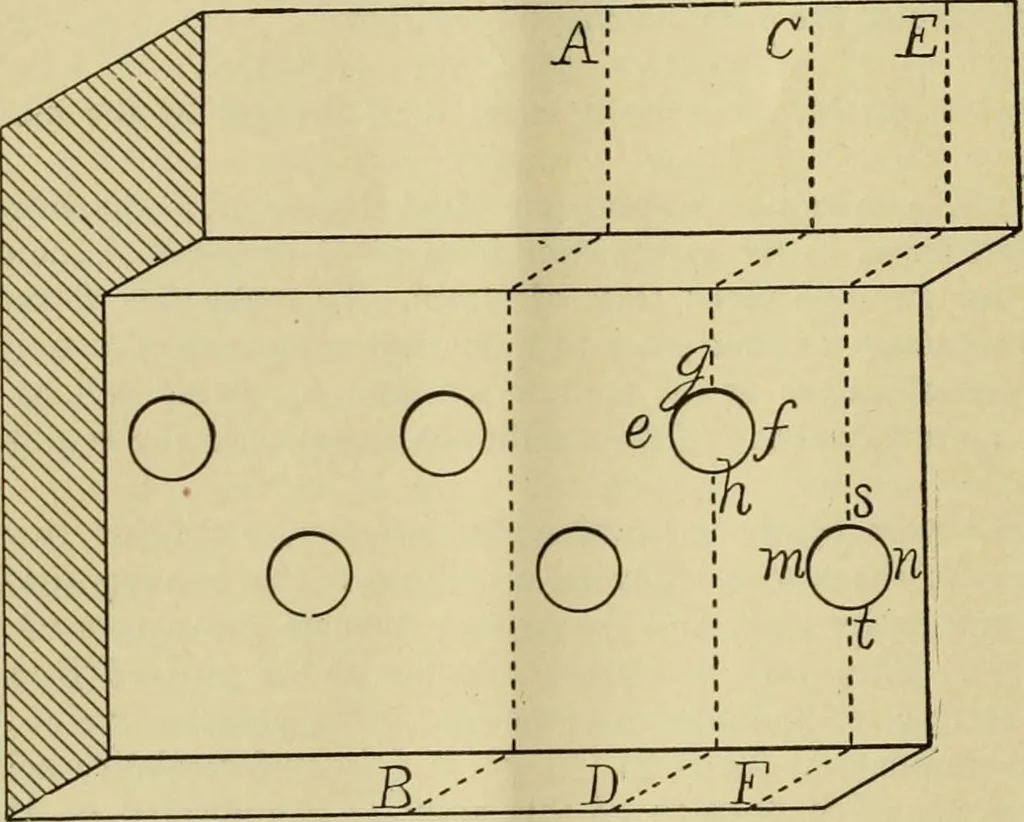

y of the hole in the perforatedplate; and we may think of the lines of circumferential tension as diverging, asthey approach the hole, so as to allow those that naturally tend to cross thehole to pass around it, immediately above and below it. The metal in thevicinity of g and h, therefore, must… … O |<^> R.-- J).-- F.-- Fig. 27. — Effect of the Rivet-holes. increase in the intensity of the circumferential tension in the vicinity of the hole,this being a subject reserved for more extended treatment on a future occasion;but we shall assume that the disturbance of the stress, due to the…
