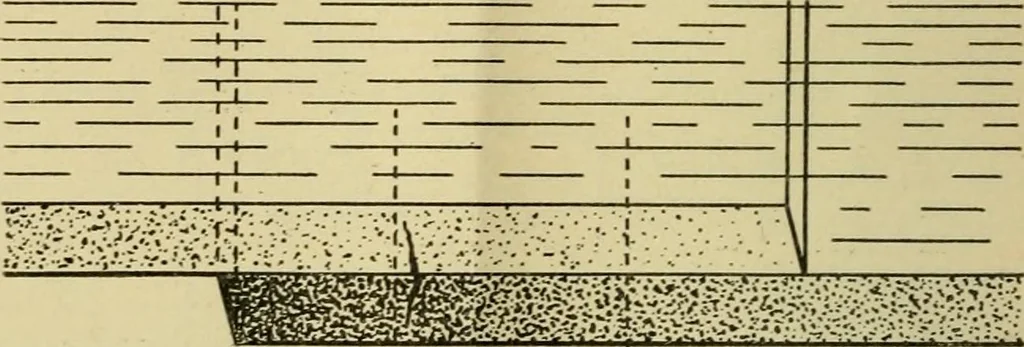

ation of heat inthe outer plate, as is suggested in the diagram. It is to be noted, too, that thetemperature of the inner lap of the joint is lower than that of the outer one,not only because the inner lap is nearer to the water, but also because a certainproportion of the heat that enters the… … M»^<j.y«.-.;-.n-:t..-,-, -.■■-■•■■■.■.- --. -.-..-■ .■■■■■■■. Fig. 4.—Illustrating the Distribution of Temperature in the Plates. joint, let us consider the boiler, first, in the cold state, as it came from thebuilder. We will suppose that the rivets fitted the holers perfectly, and that…
