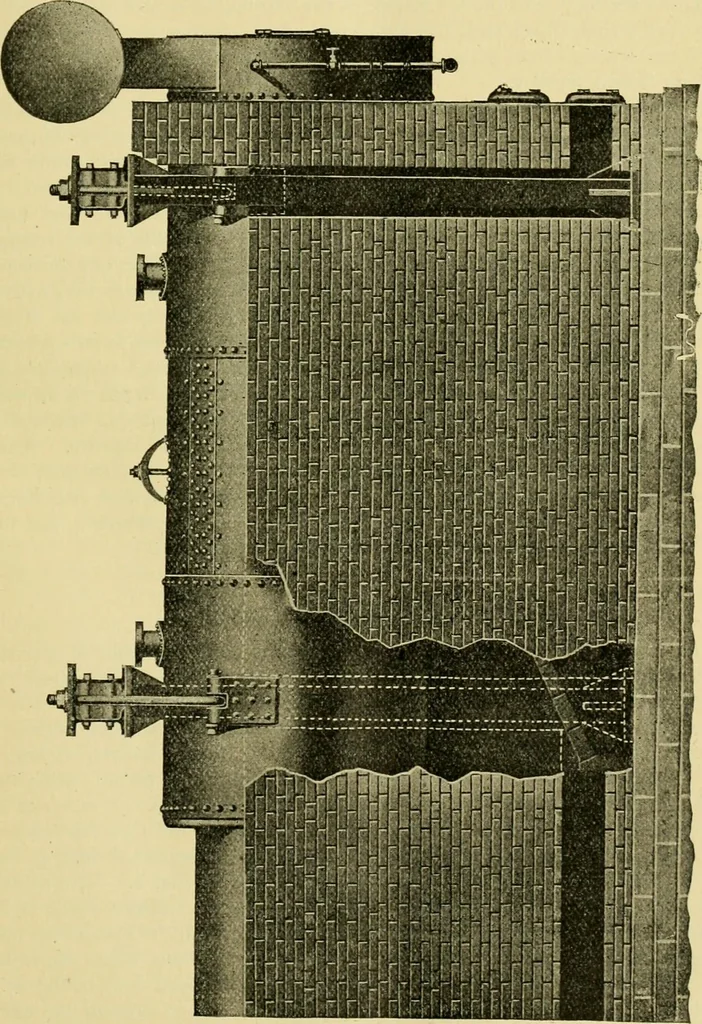

certain essential points which mustbe attended to in any successful design that is intended for this same purpose.In special cases, we introduce modifications in this setting, ourselves ; but thedesign here shown is the one that is preferred by our designing department,and in departing from it in… … O 68 THE LOCOMOTIVE. [July, retain under all circumstances is the provision, under some form or other, for thecooling of the columns that support the beams from which the boilers are sus-pended, as will presently be explained in detail. Fig. i shows a front elevation of several horizontal tubular…
