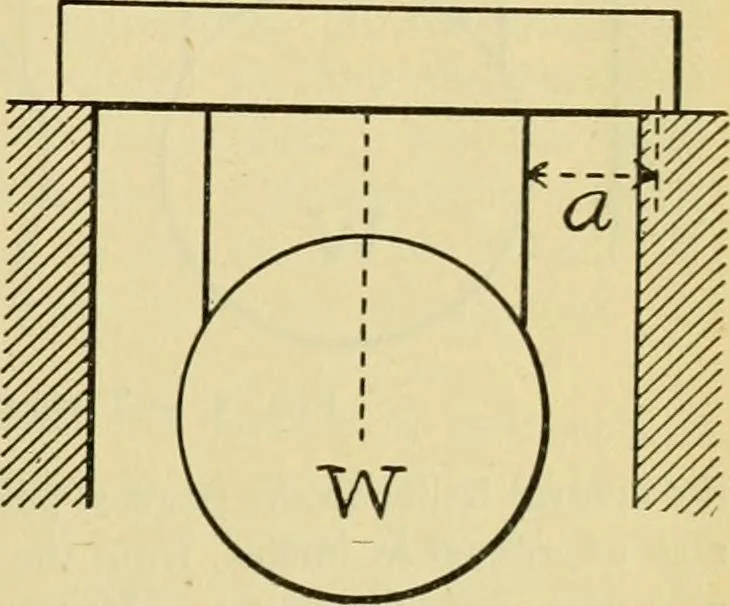

will have tosustain, when there is but one boiler,placed centrally between the supports,the rule is as follows: Multiply thetotal weight of the boiler and its con-tents and fittings, in pounds, by the dis-tance, in inches, from one of the hang-ers to the nearest point of support ofthe beam, and… … Fig. %. — One Boiler between- Supports. (In Fiars. 3, 4, and 5 Wsignifies the total weight of one boiler.) 74 THE LOCOMOTIVE [July, ported by tzuo pairs of beams, arranged substantially as shown in Fig. 2.) InFig. 3, if a is given in inches and W in pounds, then the maximum bendingmoment which each…
