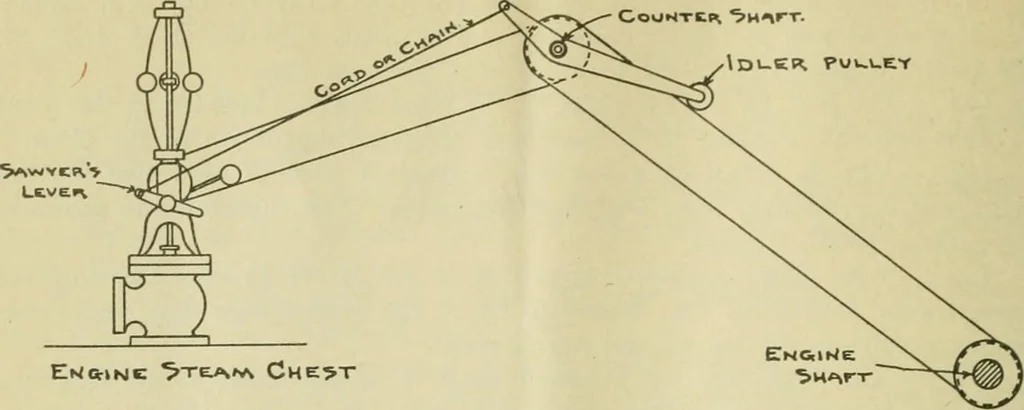

ll to call attention to the proper way to connectup governors operated in this manner. Of course, it will be understood thatreference is now made to the throttling governor with an automatic safety stopattachment. This safety stop is designed to be operated by an idler pulley, whichrides on the… … E»^or»NC ^xe>\N\ Che^x Fig. I.— Safety Device for a Countershaft Driven Governor. When it is necessary to use two belts, as noted above, it is evident that theautomatic safety stop on the governor will not operate if the belt that runsfrom the engine shaft to the counter-shaft should break. In…
