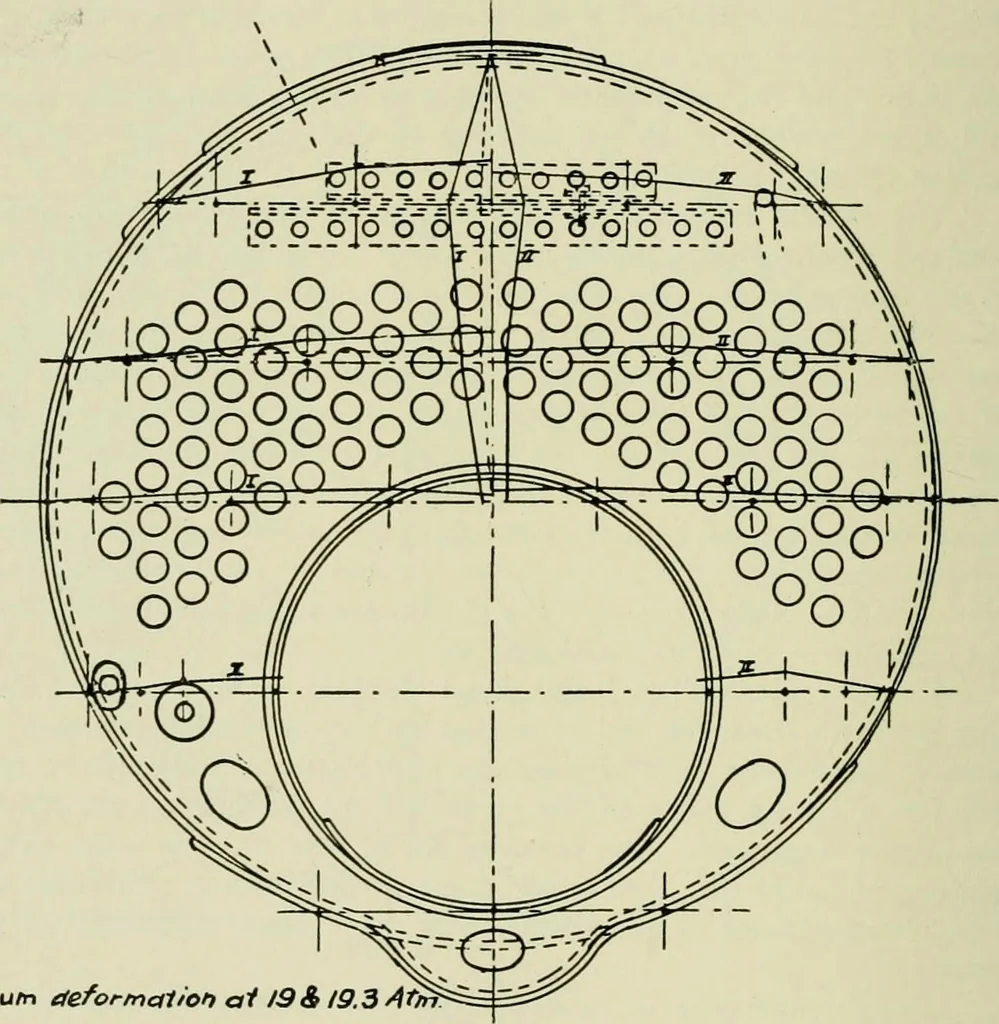

nd plate andare not neutralized by the stay bolts of the combustion chamber. This remarkalso applies to the stiffening pieces of the back end plate at the approximateheight of the water level, which are generally now made in the form of T-iron.When the longitudinal stays exist, as in the case of… … Maximum deformation a119 & 19.3 4mRemanent deformaiion Fig. 3 Fig. 4 is given in order to show the deformations which occurred in thecombustion chamber of boiler No. 1. It was decided not to give those of theNo. 2 boiler as they were practically identical; the lines of total deformationsare…
