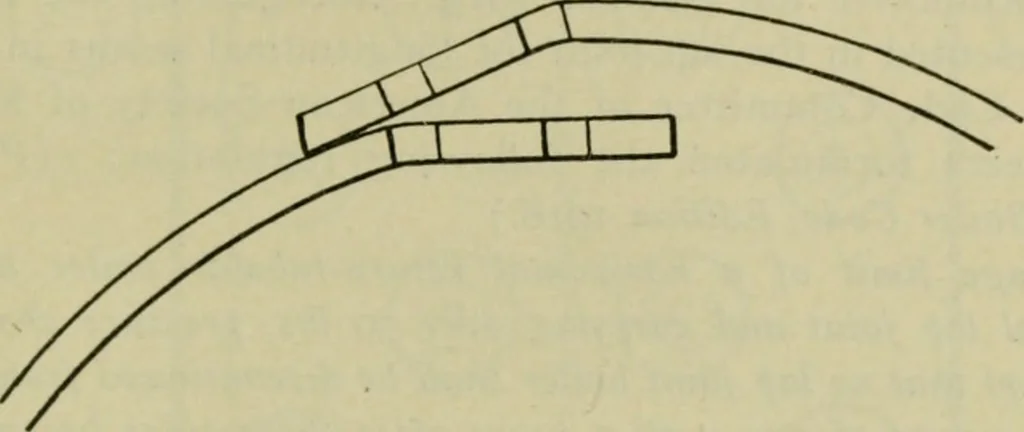

Fig. I. I92I.] THE LOCOMOTIVE, 143 by annealing. In addition to this the plates, if bent after punch-ing, will bend along a line of rivet holes as shown in Fig 2 insomewhat exaggerated form. … Fig. 2. The elementary lap joint is illustrated in Fig. 3. If tensionis applied as indicated in Fig. 4, the plates, in an attempt to alignthemselves with the load, will bend along a line running underthe outer edge of the rivet heads. VJVJ
