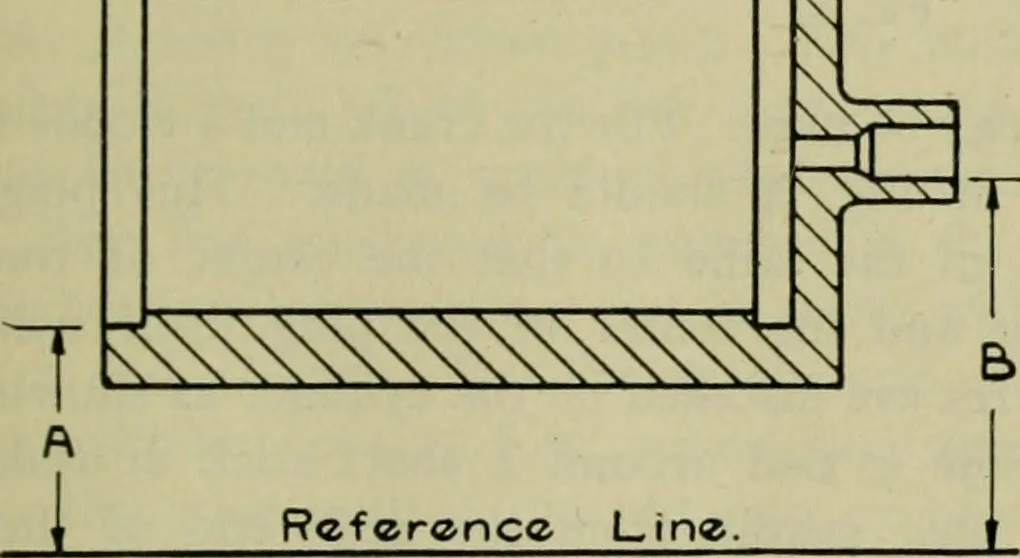

plane so that it willbe parallel to the center line is a simple matter. Fig. 2 is a planview showing how this may be accomplished. The lengths A and Bare entirely arbitrary. What is of importance is the difference be-tween A and B and this may readily be calculated from measure-ments of the… … Fig. 202 THE LOCOMOTIVE, [July, box, and continuing to a point well beyond the center line of the crankshaft. This line must be located by careful measurement with refer-ence to the bore of the cylinder at the head end and the bore of thestuffing box at the crank end of the cylinder. To locate and…
