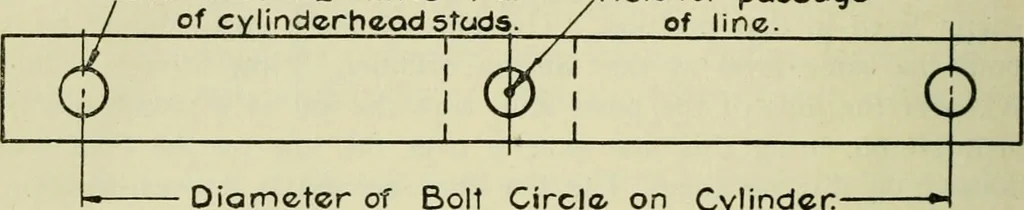

Fig. 202 THE LOCOMOTIVE, [July, box, and continuing to a point well beyond the center line of the crankshaft. This line must be located by careful measurement with refer-ence to the bore of the cylinder at the head end and the bore of thestuffing box at the crank end of the cylinder. To locate and… … Circle on Cylinder- Tin pi ate. Fig. 3. such as that shown in Fig. 3 may be used. For the crank end a woodenplug similar to that shown in Fig. 4 should be made. This plugshould be turned and bored in the lathe so that the center of thesmall hole passing through it and the center of the plug itself…
