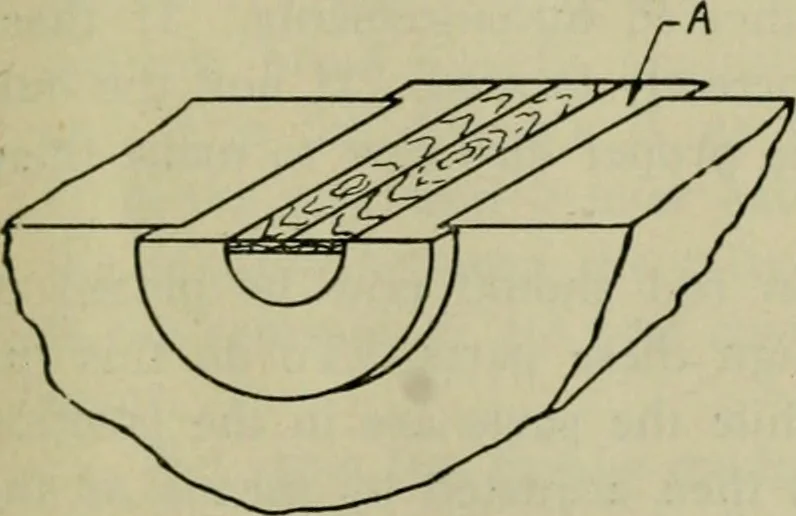

hen erected to intersectand to be at right angles to the center line of the cylinder. The bear-ings are then shifted so that their center lines lie exactly under and just touching the line of the shaftcenter. In doing this, any shiftingof the outboard bearing that isnecessary should be done, as far… … 206 THE LOCOMOTIVE. [July, The erection of the shaft center line is probably the only pointrequiring further explanation at this point. Targets or posts, similarto the one used for the location of the crank end of the cylinder centerline, should be used to carry the ends of the line in question. A…
