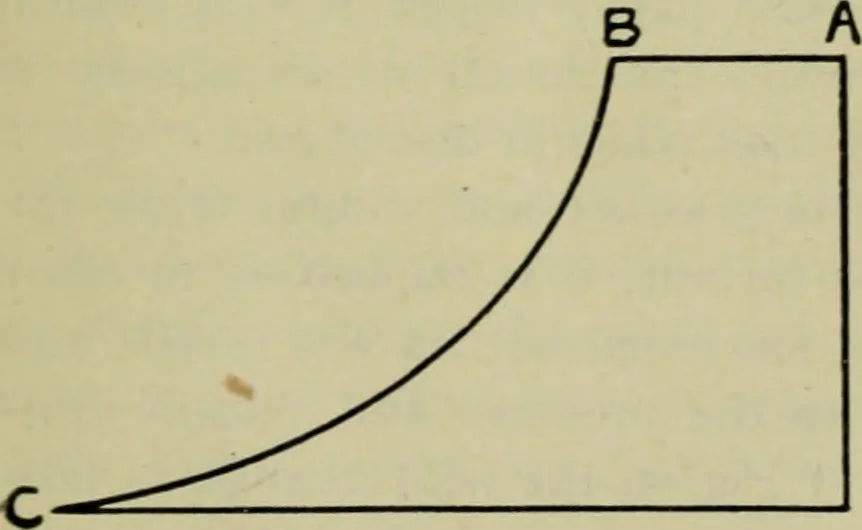

boiler into one pound of steam,thereby pushing along the successive unit volumes of steam and inturn causing the flow of one unit into the nozzle. Considering the chart shown in Fig. 5 as repre-senting the pressure and volumechanges taking place in onepound of steam or water the lineAB will… … Fig. and is intermittent in the engine,it was proper for us to isolate a unit volume of steam in the cylinderby the closing of the sliding gate because such action is exactly similarto the operation of the real engine. With the turbine, however, Avecannot isolate a unit volume. Nevertheless, we can…
