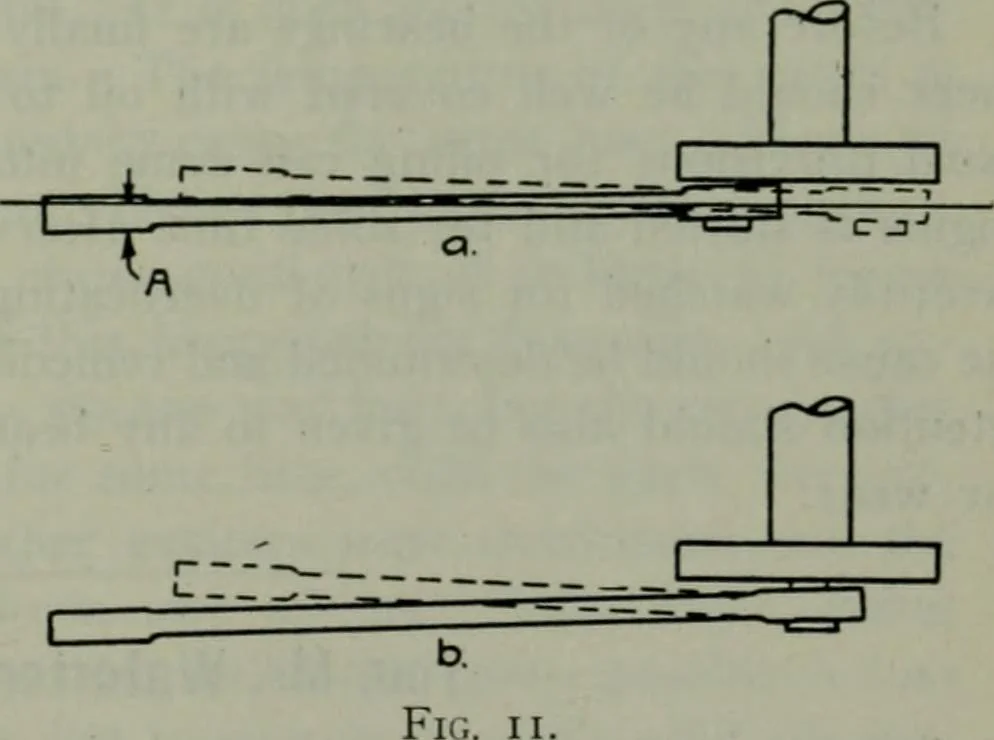

rodto the crankpin, bring the bearing brass snugly against the inner shoulder of the crankpin.and note the distance A as in Fig. na. Then disconnect the rodfrom the pin, turn it over half way and repeat the measurement. Ifthe relation between the cylinder center line and the line on the rodis the… … 208 THE LOCOMOTIVE. [July. face of the crank disc. If in either case the bearings are found out ofalignment, they should be scraped or machined to bring them to thecorrect condition. It is possible that the wristpin may not be in correct alignment.This can be tested by connecting the rod snugly to…
