Structural mechanics : comprising the strength and resistance of materials and elements of structural design, with examples and problems (1907)
Greene, Charles E. (Charles Ezra), 1842-1903, Greene, Albert Emerson · New York : John Wiley & Sons ; London : Chapman & Hall · leaf 215

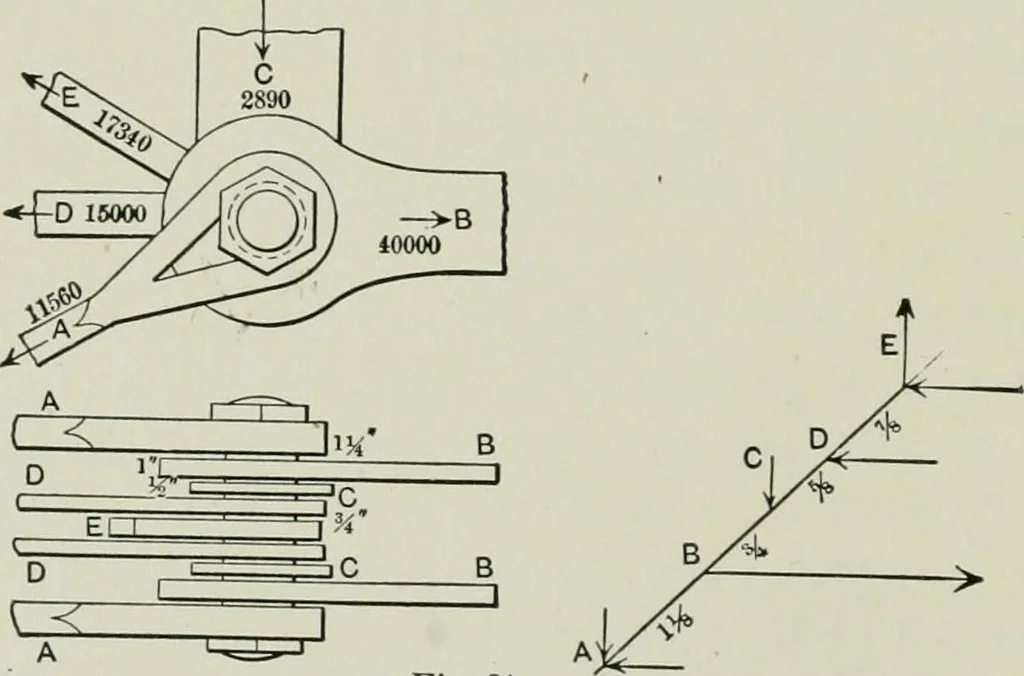

nding moment on the pin caused by the forcesin those pieces will generally determine the diameter of the pin.In computing the bending moments, the centre Hne of each pieceor bearing is considered the point of appHcation of the forcewhich it carries. This assumption is likely to give a result… … Fig. 81 of the pieces on a pin, with the forces and directions marked.The thickness of the pieces, which are supposed to be in contact,is also shown. The joint must be symmetrically arranged, toavoid torsion, and simultaneous forces must be used, which reduce RIVETS: PINS. 201 to zero for…
Mechanics · Structural analysis (Engineering)
