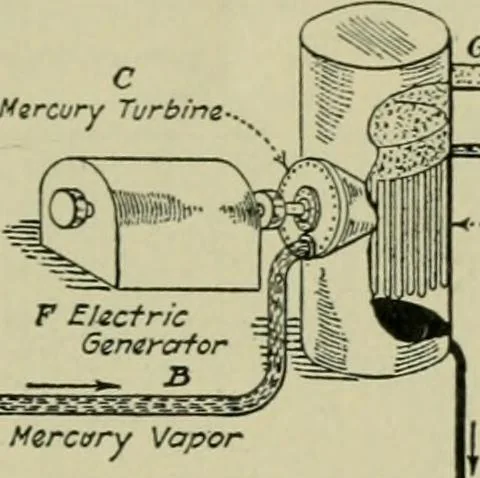

is turned into the regular steam main of the plant and com-pletes its cycle by passing through the turbines, thence to the con-denser and hot well, and back to the boiler as feed water. Fig. 1 is adiagram of the apparatus and gives an idea of the relations existingbetween the various elements. The… … E-Mercury Liquid Return Mercury Boiler-A Mercury leaves Boiler at 512 Deg Fqhr., AS Lb. PressureIn Condenser, Mercury at 29in. Vocuum,4l4 Deg.FahrSteam in Condenser Steam Space, ZOO Lb. Pressure, 386 Deg. Fohr From Mechanical Engineering. Fig. i. il THE LOCOMOTI V E . [July. ature of saturated…
