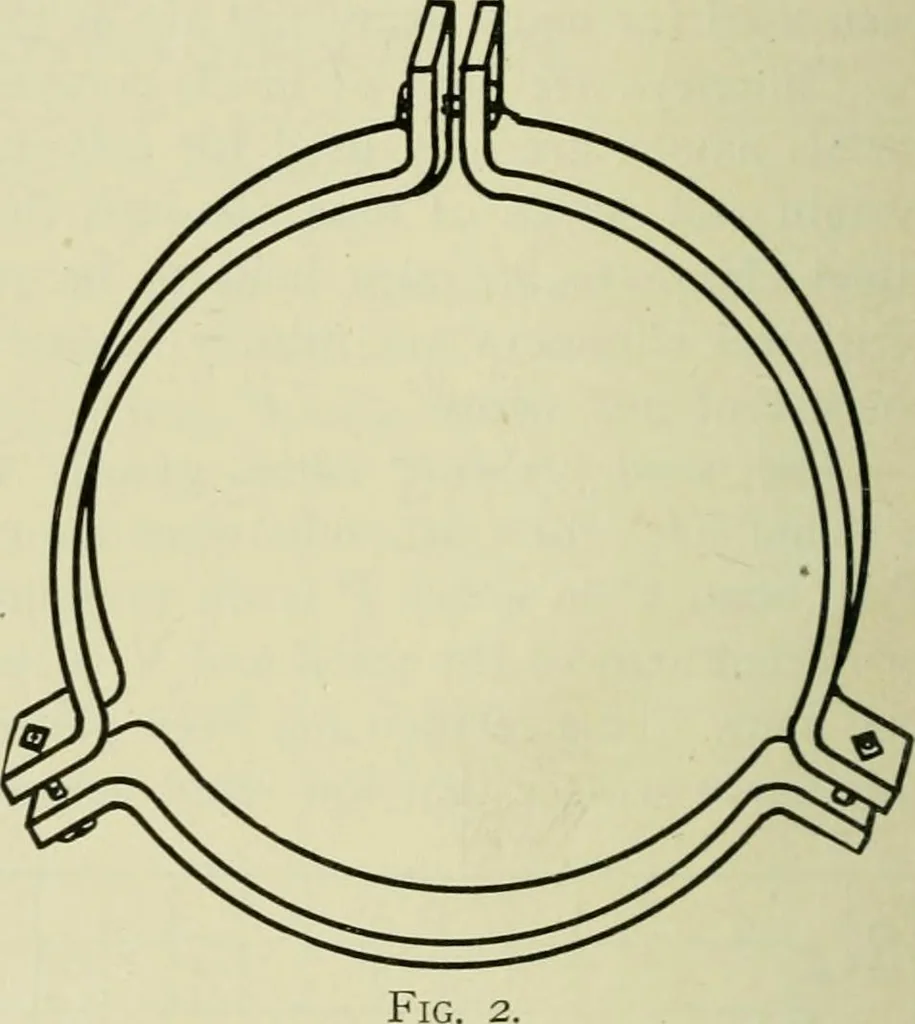

it is assumed first of allthat the wind is blowing directly in line with one of the guys. If oneguy is used it is assumed to carry the load caused by the wind pressureon all the stack above the guy ring and that on two-thirds of the dis-tance between the ring and the foundation. If two guys are… … 1922.] THE LOCOMOTIVE i:» r\J •III! (T) w r s : \ in i 10 X|J IU o H O Or - - 01 (•» *\ ractor bv which Total Wind Pressure Wto be maltipliad to obtain Pall on Ga> is / Wire 10 12 1.4 1.6 1.8 2.0 1 I2-2 Fig. 3. The guy wires must, of course, make an angle with the stack andthe pull on them will…
