Hartford Steam Boiler Inspection and Insurance Company · Hartford, Ct. : Hartford Steam Boiler Inspection and Insurance Co · leaf 239

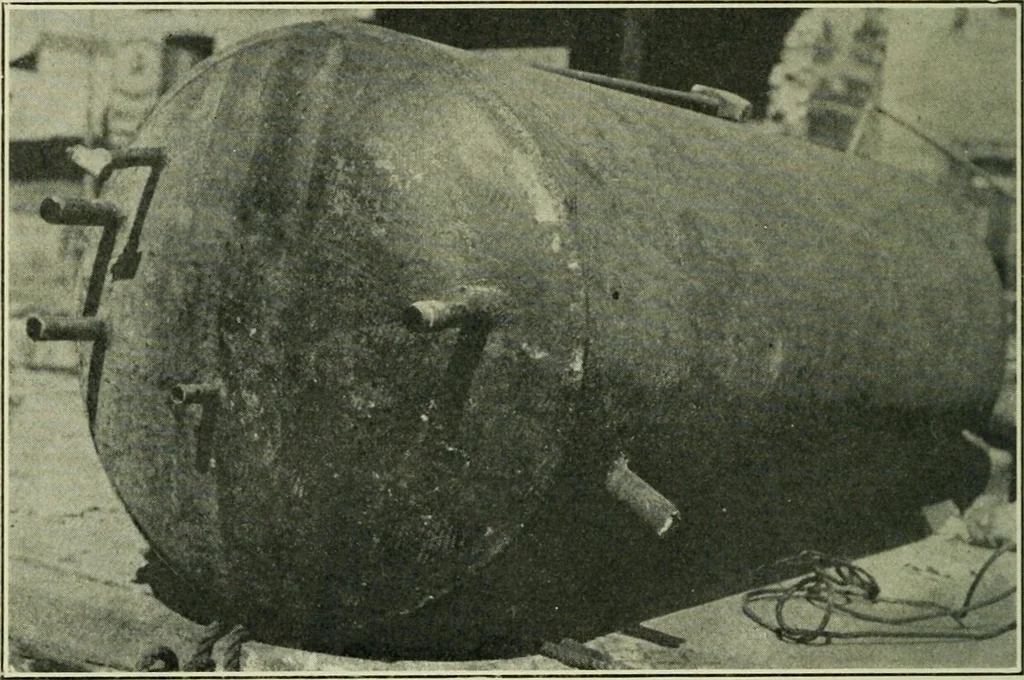

October, Explosion of Generator in Absorption Refrigerating System AN autogenously welded generator in the absorption refrigerating^system at the Stenton Park branch of the Scott-Powell Dairies,Philadelphia, Pennsylvania, exploded July 29, 1926. Four personswere injured, one of them fatally, and… … Fi.,. I. The tank that exploded was 43 inches in diameter by 10 ft. long,and was 7/16 inch thick. The heads were of the convex, or plus,type, approximately 17/32 inch thick. They were flanged and fittedinside of the shell, the turn of the flange being then welded to the endof the shell. Figure i…
Locomotives · Steam-boiler explosions
