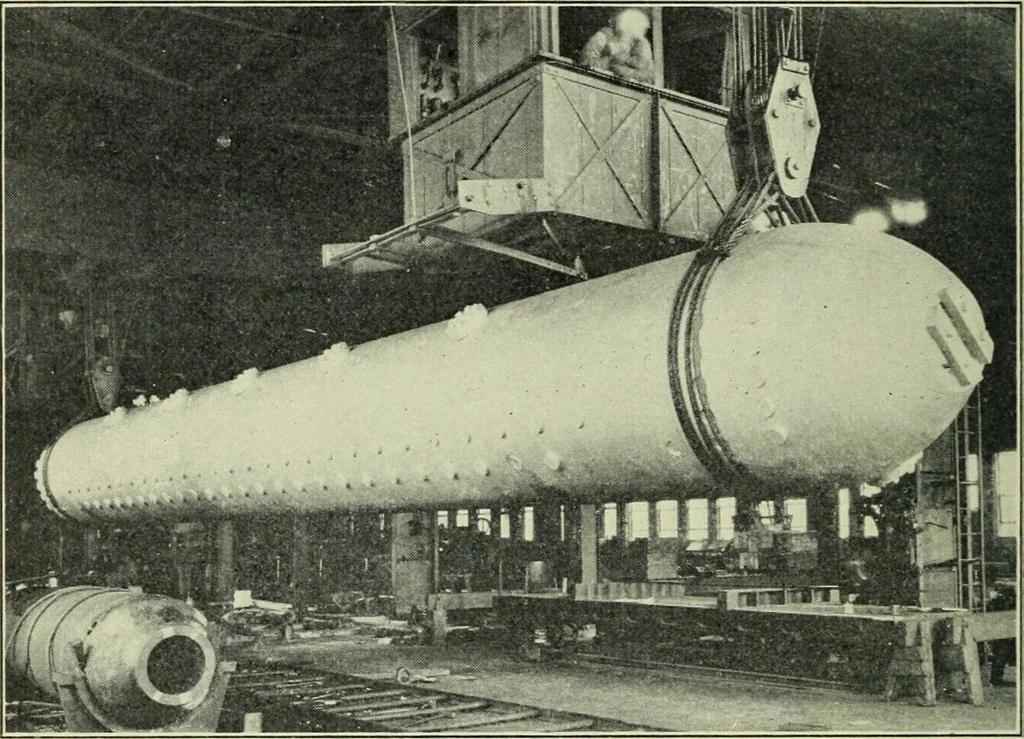

KW 1—1 o ;<^ c . d H^ H U CO om Figure i 210 THE LOCOMOTIVE July. original layout drawing of the boiler which the Babcock & Wilcox Com-pany installed in that plant in 1878. It will be noted that although the Tubulous Safety boiler resembles the modern water tube boiler inmany respects, there… … Figure 2 that boiler and those of more modern design is that iron castings wereused for the heads of the drum. Another is the method of joiningthe tube headers to the drum. The present design has connectionsfor the tube headers riveted to the drum some distance from eitherend, but in the old model…
