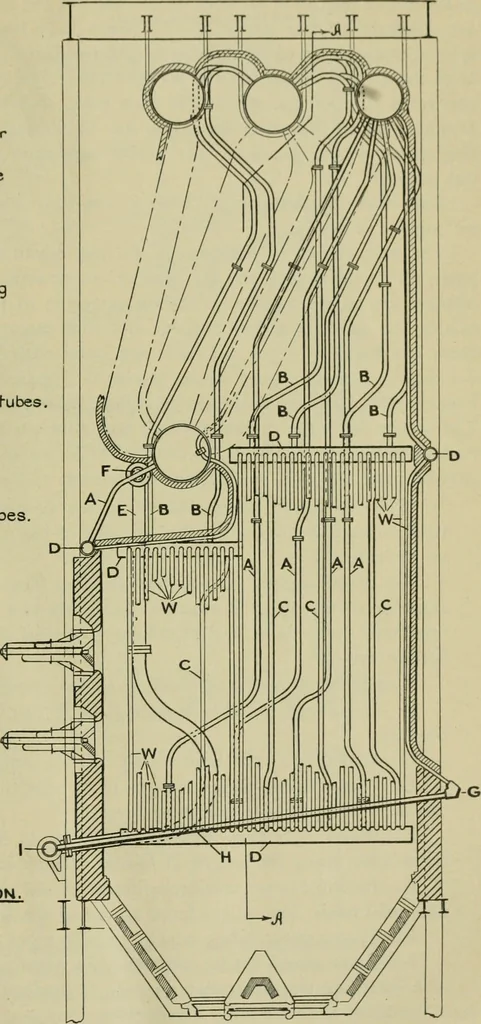

Half Front View Section Ji-Jj Water-cooled Furnace Using Powdered Coal as FuelDrawing shows relation oF Vertical Sent Tube TypeWater Tube Boiler to Water Walls and the Circulat-ing Connections 193° THE LOCOMOTIVE 3 A - Water supply. B Steam outlet. C Water circulator D - Water wall tubeheader E… … H4 THE LOCOMOTIVE October, in successful operation are used as the basis of the sketches. The boilersare diagrammatically shown, one of which is of the vertical bent tubetype operating at 450 lbs. pressure and rated at 1,800 hp. The otheris of the cross-drum horizontal straight tube type operating…
