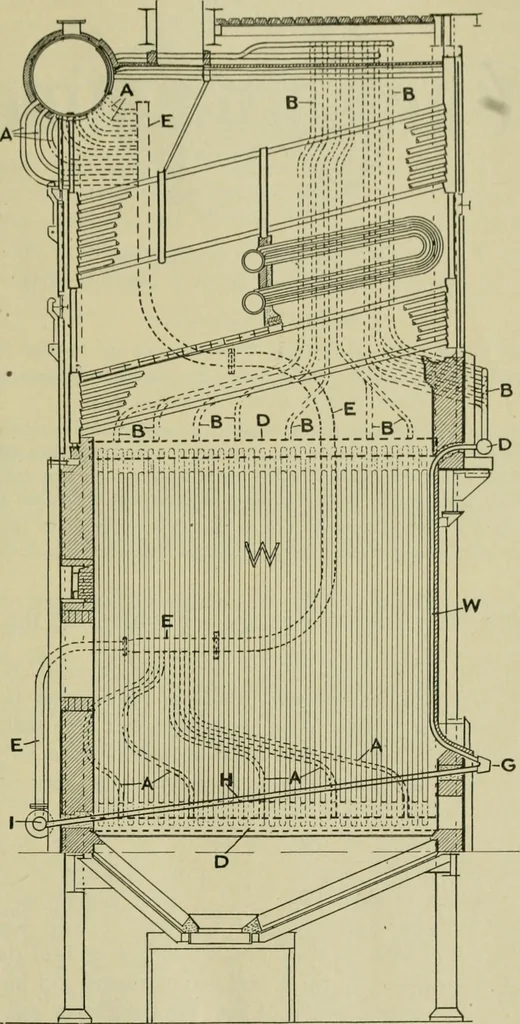

one at each end. F—Water collecting headers connected to drum by series ofshort tubes along the length. A header at each end. G—Junction boxes connecting water screen tubes with rear fur-nace wall tubes. Two of the latter to one of the former. H—Water screen tubes, which are plain tubes on 14 inch… … Drawing showing relaHonof Cross Drum HoriionralStraight-Tube Boiler of-the secHonol header typefo Water Walls and Circulating Connections.Powdered Coal as Fuel. n6 THE LOCOMOTIVE October,
