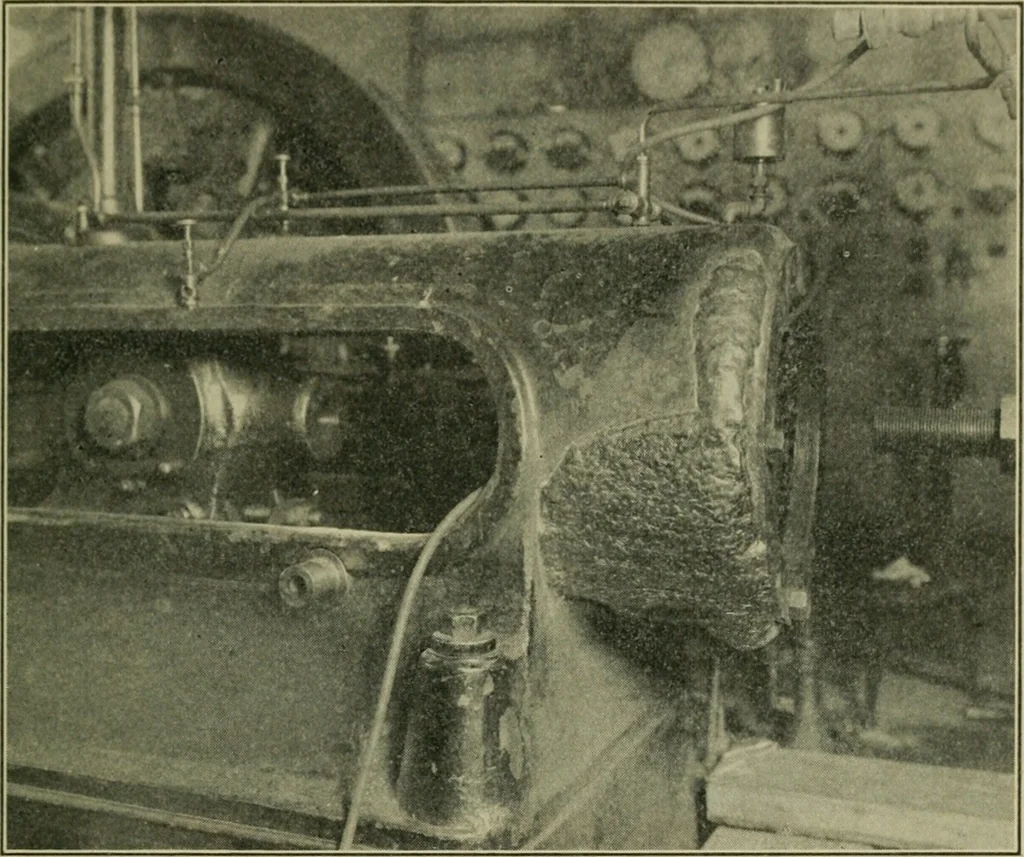

nces put such a severe bending strain on the frame neck thata long crack formed in short order. Such tightening should never beundertaken without first studying the real cause of the looseness. 11 )31 TH E LOCO M ()T I V E !29 The telltale of oil oozing in and out from under the frame al every… … Figure 7. bending stress in the frame neck due to sagging of the frame can bedetected. This is by applying to the frame neck a simple strain gage suchas is used by this Companys inspectors. The application of this straingage is shown in Fig. 3. So long as the readings of the dial micrometerare…
