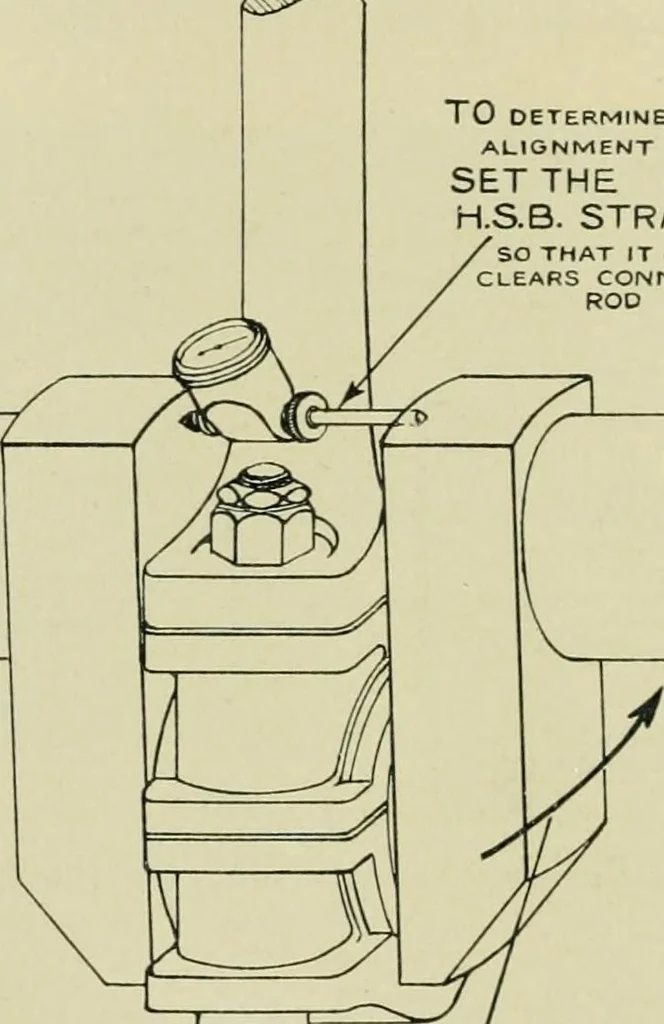

,we have, from the phenomenon explained above, an index to the amountof fibre stress to which the material of the crank webs is subject, solong as the fibre stress is below the elastic limit of the material. The method of measuring the distortion of a crank with the Strain-gage is illustrated in… … T3J TURN ENGINE UNTIL CONNECTING ROD NEARLY TOUCHES STRAINGAGE ROD ON OTHER SIDE AND TAKE A READING ATeACM QUARTER. Figure 3. pointed rods bear against the inside faces of the crank webs withenough pressure to sustain the weight of the gage. The crank is thenturned slowly to four different…
