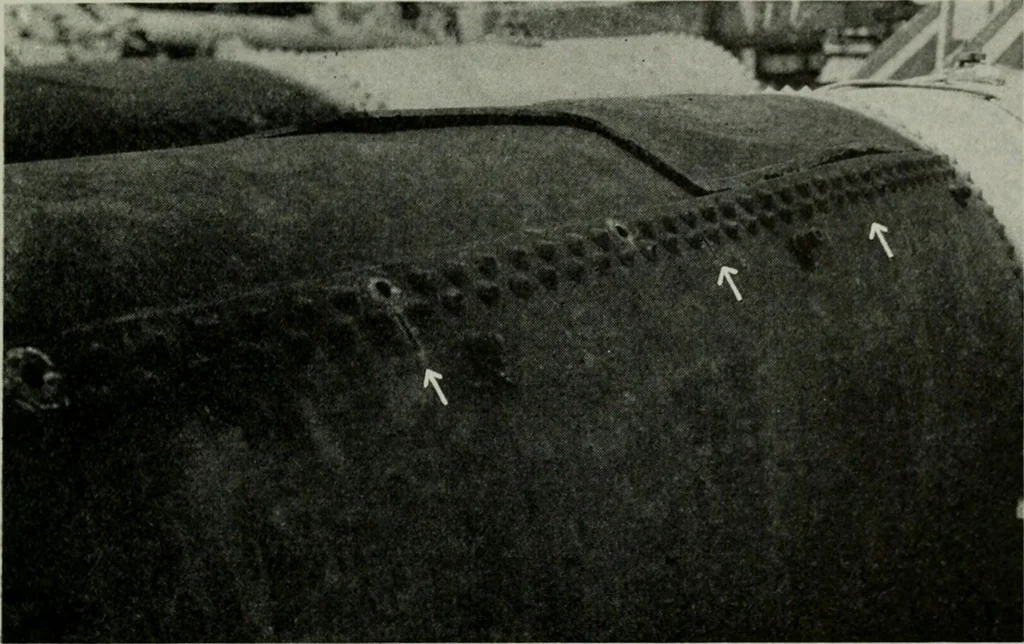

ment was tocome after the hydrostatic test. 2. SLOTTING The plan followed in slotting the outside plate between the rivetheads in the inner row of the longitudinal seams was a modification ofthe plan outlined in The Locomotive of October, 1914. The slots werecut 5/16 deep, J4 wide, and… … Figure 4—Failure in Boiler No. j after the hydrostatic test. The breakat the right is clearly from embrittleinent. The continuation of thefailure across the boiler is a stress tear similar to that in Boiler No.2, which exploded under steam pressure. The lap scam crack slotsare indicated by the…
